Eaton JBXPC0G05MSSDSMR Push-Pull Connector - IP40/IP68
Part Number: JBXPC0G05MSSDSMR
Quick Summary
Eaton Souriau JBX series IP40/IP68 push-pull connector provides rugged, rapid electrical connectivity for industrial machinery. On busy lines, wiring complexity and maintenance downtime erode uptime and margins. UL 1977 compliance, IP40/IP68 ratings, and a sealing gland with optional boot reinforce safety, environmental protection, and field-installation flexibility across harsh conditions. This solution supports scalable automation projects while delivering reliable, easy-to-service cable receptacles and backshell configurations for modern control panels and equipment.
Product Information
Extended Description

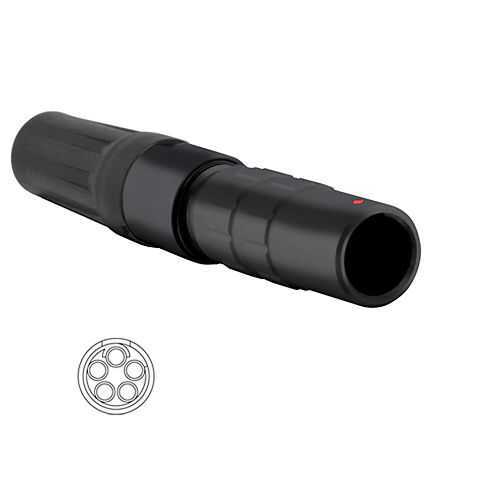

JBXPC0G05MSSDSMR Eaton: In line cable receptacle, IP40, size 0, 5 male contacts, cable clamp protective boot; JBXPC0G05MSSDSMR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G05MSSDSMR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
11.86 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland With Optional Boot
The IP40/IP68 rated design delivers enduring environmental protection, reducing ingress and contamination risk, which translates to lower failure rates and less unscheduled downtime on production lines. The 5-male-contact configuration within the size 0 form factor enables compact yet capable power and signal transfer, supporting streamlined harnesses and faster tray-to-panel wiring. The backshell is straight, with a sealing gland that accepts an optional boot, providing a secure seal and improved cable strain relief for installations in wet or dusty environments. Compatibility with the JBX series affords quick-mated, high-integrity connections that cut maintenance time and boost enclosure reliability. The UL 1977 compliance adds regulatory confidence for control cabinets and automation equipment, while the protective boot option reduces assembly errors in field installations. This combination delivers measurable gains in efficiency, quality, and total cost of ownership across automation projects.
Get a Quick Quote for a Eaton JBXPC0G05MSSDSMR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G05MSSDSMR?
Enquire Now
FAQs
This connector uses 5 male contacts in a size 0 footprint with a straight backshell. Install the backshell, attach the sealing gland, and, if needed, add the optional boot to improve environmental sealing. Ensure proper cable clamp protection to prevent strain and verify UL 1977 compliance for cabinet applications.
Yes. The part carries UL 1977 compliance and IP40/IP68 ratings, making it suitable for enclosed and exposed industrial environments where rugged sealing and reliable mating are required.
Ideal for automation cabinets, robotics, conveyors, and packaging equipment, where quick-mate, high-integrity connections are critical and exposure to dust, moisture, or contaminants must be minimized.
IP40 provides basic protection against solid objects, while IP68 offers high-level ingress protection against dust and water under specified conditions, guiding whether a connector remains reliable in damp or wash-down environments.
The robust sealing, rapid mating, and compact form factor reduce wiring time, improve uptime, and lower maintenance costs by decreasing failure rates and simplifying field servicing and replacements.
