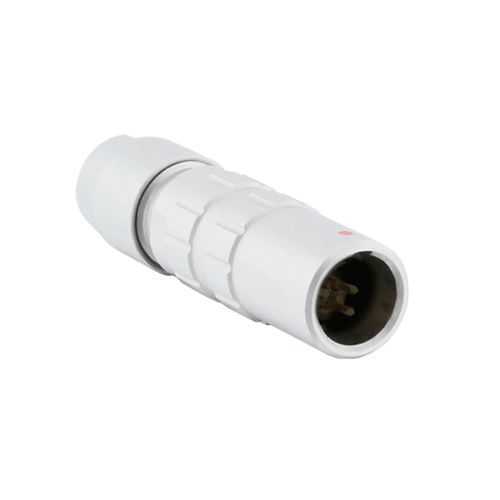

Eaton JBXPC0G05MSSDSR JBX Series Push-Pull Connector - IP40/IP68
Part Number: JBXPC0G05MSSDSR
Quick Summary
Eaton Souriau JBXPC0G05MSSDSR is a rugged push-pull connector for reliable in-line cable connections in harsh industrial automation. Engineers often face moisture ingress, mis-mating, and downtime when wiring modular systems in demanding environments. This connector is UL 1977 listed and delivers IP40/IP68 protection with a sealing gland backshell to meet stringent industrial requirements. Its compact form and straight backshell simplify panel mounting and field assembly, enabling faster commissioning and reduced maintenance costs. By combining robust mechanical protection with certified reliability, it supports scalable control panels, robotics, and automation racks while preserving electrical integrity and system uptime.
Product Information
Extended Description
JBXPC0G05MSSDSR Eaton: In line cable receptacle, IP40, size 0, 5 male contacts, cable clamp backshell; JBXPC0G05MSSDSR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G05MSSDSR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
11.86 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland
Feature → Business Impact → Application: 38 mm product length with a 10x10 mm profile and 5 male contacts reduces space consumption in compact control panels, enabling denser layouts and easier servicing in robotics and machine tools. The result is faster installation and lower panel area costs, with reliable signal integrity across high-density wiring. Feature → Business Impact → Application: IP40/IP68 protection plus a sealing gland backshell provides environmental resilience for indoor-to-outdoor or damp environments, lowering ingress-related failure risks and extending service life in material handling and process automation. Feature → Business Impact → Application: UL 1977 compliance ensures regulatory alignment for safety-critical devices, simplifying qualification of control cabinets and reducing time-to-approved status for airline-grade or heavy-industrial deployments. Feature → Business Impact → Application: Straight backshell and cable clamp backshell design streamline cable management, easing field termination and panel mounting, which cuts installation time and improves repeatability in conveyor systems and packaging lines. Feature → Business Impact → Application: profession-grade push-pull mating delivers quick connect/disconnect without tools, supporting rapid changeovers and uptime in test rigs, robotics, and automation cells. IndustryContext: With a compact footprint and durable housing, the JBX series is well-suited for automotive, packaging, and process industries where reliability and space efficiency are critical.
