Eaton JBXPC0G06FSNDSR IP40/IP68 Push-Pull - UL 1977
Part Number: JBXPC0G06FSNDSR
Quick Summary
The Eaton JBXPC0G06FSNDSR IP40/IP68 Push-Pull connector delivers robust field-terminated joins for rugged industrial automation. Engineers frequently struggle with cable strain, moisture ingress, and maintenance cycles in harsh environments, which hurt uptime. UL 1977 compliance, IP40/IP68 sealing, and a metal backshell provide safety, environmental protection, and EMI shielding for reliable operation. This solution complements Souriau JBX series connectivity, offering a compact, adaptable interface that reduces wiring time and total cost of ownership in control panels and machinery installations.
Product Information
Extended Description

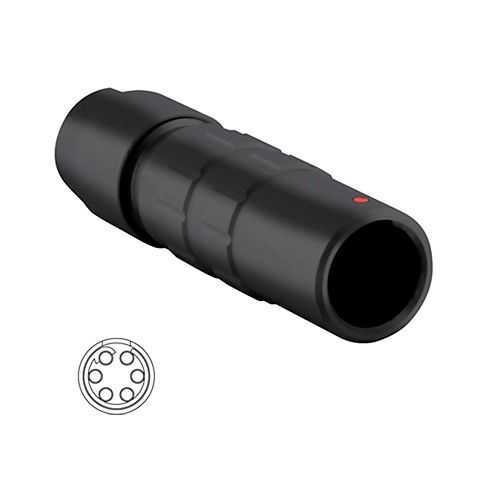

JBXPC0G06FSNDSR Eaton: In line cable receptacle, IP40, size 0, 6 female contacts, cable clamp backshell; JBXPC0G06FSNDSR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G06FSNDSR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
11.98 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland
Feature: IP40/IP68 metallic push-pull connector. Business Impact: Protects against dust, water, and contamination, extending service life in demanding environments. Application: Control panels, robotics, and conveyors where ingress protection is critical. Feature: 6 female contacts with cable clamp backshell. Business Impact: Higher contact density in a compact footprint while ensuring strain relief and dependable signal integrity. Application: Small- to mid-size automation nodes and sensing networks. Feature: Straight backshell with Sealing Gland. Business Impact: Simplifies routing while maintaining environmental sealing and EMI shielding for stable performance. Application: Tight enclosure layouts and cable routing along machinery. Feature: UL 1977 compliance. Business Impact: Regulatory assurance for interconnection devices used in industrial controls, reducing certification risk. Application: System integration in panels adhering to electrical safety standards. Feature: Compact dimensions (38 mm length; 10 Ă— 10 mm footprint) and lightweight (11.98 g). Business Impact: Easier installation in constrained spaces, lower weight in moving assemblies, and faster maintenance. Application: Robotic arms, packaging lines, and machine builders seeking space-efficient connectivity. Feature: Compatibility with Souriau JBX series. Business Impact: Streamlined spare-part provisioning and standardized procurement across automation projects. Application: Global deployments requiring consistent connector families and support.
Get a Quick Quote for a Eaton JBXPC0G06FSNDSR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G06FSNDSR?
Enquire Now
FAQs
The combination of IP40/IP68 sealing, a sturdy metallic push-pull housing, and a sealing-gland backshell protects against dust, water, and vibration. The 6 female contacts enable reliable signal and power paths in tight spaces, while UL 1977 compliance supports safe integration in industrial control panels and automated equipment.
The connector provides 6 female contacts, housed in a compact 38 mm body with a straight backshell. The sealing gland backshell supports straightforward cable routing and strain relief, ensuring a robust connection in dynamic industrial settings.
Yes. The unit is UL 1977 compliant, a key specification for interconnects in control panels and automation equipment. This certification, along with IP protection and a metal backshell, helps meet safety and reliability requirements for industrial applications.
The straight backshell simplifies cable routing and mating alignment in tight spaces. The sealing gland provides environmental protection, and the 38 mm length with a 10 Ă— 10 mm footprint facilitates mounting in compact panels. Consider ensuring proper cable clamp engagement to maximize strain relief and seal integrity.
Benefits include reduced maintenance downtime due to reliable sealing and EMI shielding, quicker mating for faster assembly, and standardized use within the Souriau JBX series easing spare-part logistics. In high-cycle or moisture-prone environments, lifetime cost savings often exceed initial integration costs through fewer failures and longer service intervals.
