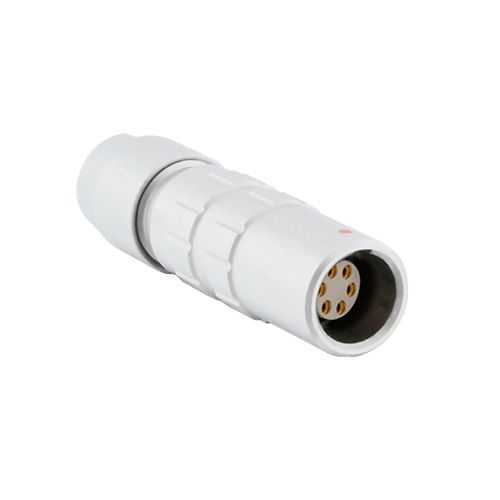

Eaton JBXPC0G06FSSDSR Push-Pull Connector - IP40/IP68
Part Number: JBXPC0G06FSSDSR
Quick Summary
The Eaton JBXPC0G06FSSDSR is a rugged push-pull connector for harsh industrial environments. Engineers often battle sealing integrity, vibration resistance, and tool-free mating in IP-rated systems. It delivers UL 1977 compliance and IP40/IP68 ratings, with a straight backshell and sealing gland for reliable field installation. By combining compact size with robust performance, it supports space-constrained panels, quick field wiring, and long-term maintenance savings. For procurement and design teams, this module expands options for IP-rated connectors and Souriau JBX series compatibility across automation projects. Its 38 mm length and 10x10 mm footprint fit tight enclosures while preserving sealing performance and reliable mate reliability.
Product Information
Extended Description
JBXPC0G06FSSDSR Eaton: In line cable receptacle, IP40, size 0, 6 female contacts, cable clamp backshell; JBXPC0G06FSSDSR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G06FSSDSR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
11.98 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland
Feature: IP40/IP68 metallic body delivers proven protection against dust and moisture. Business Impact: lowers field failure rates and extends service intervals in demanding environments. Application: ideal for control panels, robotics, and outdoor automation where reliability is critical. Feature: Six female contacts in a size 0 configuration enable compact, multi-signal interfaces. Business Impact: supports richer machine-to-device communication without expanding panel space. Application: sensors, actuators, and fieldbus adapters in tight installations. Feature: In-line cable receptacle with a cable clamp backshell ensures strain relief. Business Impact: reduces wear on cables and maintains mating integrity under vibration. Application: vertical and horizontal cabling runs inside panels and enclosures. Feature: Backshell angle is Straight and backshell type Sealing Gland for straightforward assembly. Business Impact: simplifies routing and sealing, improving leak protection and compliance. Application: retrofits and new builds on standard Souriau JBX series ecosystems. Feature: UL 1977 compliance and compact dimensions (38 mm length, 10x10 mm footprint, 11.98 g). Business Impact: streamlines UL-listed panel designs and enables dense packaging. Application: automation cabinets, process equipment, and assembly lines.
Get a Quick Quote for a Eaton JBXPC0G06FSSDSR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G06FSSDSR?
Enquire Now
FAQs
The JBXPC0G06FSSDSR uses a straight backshell and a sealing gland to provide reliable sealing in tight spaces. Pair this with the cable clamp backshell for effective strain relief and controlled entry. Ensure UL 1977 compliance for panel assemblies and verify mating alignment with Souriau JBX series components to minimize installation time and rework.
This model features six female contacts in a size 0 configuration, enabling compact multi-signal interfaces suitable for sensors, actuators, and small fieldbus adapters. Its metal body provides shielding, while the IP40/IP68 rating supports reliable operation in dusty and moist environments. It integrates seamlessly with the Souriau JBX ecosystem for scalable panel designs.
Yes. The metallic push-pull design combined with a cable clamp backshell offers robust strain relief and mating stability under vibration. The sealing gland backshell enhances enclosure integrity, reducing ingress paths. This makes it well-suited for factory floors, robotics, and process equipment where vibration resistance and consistent connectivity are critical.
The connector is UL 1977 compliant, supporting safety requirements for interconnections used in industrial control panels and related equipment. Its IP40/IP68 ratings provide environmental protection for dust and moisture. These certifications help streamline compliance during design reviews and facilitate integration into UL-listed circuits and assemblies.
The JBXPC0G06FSSDSR provides quick mating with its push-pull mechanism, reducing assembly and maintenance downtime. Its sealed, compact form factor and robust metal body minimize field failures and extend service life in harsh environments. In dense cabinets, the 38 mm length and 10x10 mm footprint enable higher panel density and predictable long-term total cost of ownership improvements.
