Eaton JBXPC0G06MSNDSR Push-Pull Connector - IP40/IP68
Part Number: JBXPC0G06MSNDSR
Quick Summary
The Eaton Souriau JBX push-pull connector provides rugged, IP-rated connections for industrial automation systems. Engineers often struggle with secure sealing and reliable mating in compact layouts, especially where space is at a premium. This series is UL 1977 compliant and offers IP40/IP68 protection with a sealing gland backshell, ensuring consistent performance across demanding environments. With a metallic housing and a straightforward backshell design, it simplifies installation and reduces downtime. By combining compact dimensions with robust sealing, it supports high-density wiring and faster field maintenance, enabling machines, conveyors, and robotics in harsh production environments to run with fewer interruptions. The result is lower lifecycle risk and improved equipment uptime for OEMs and maintenance teams.
Product Information
Extended Description

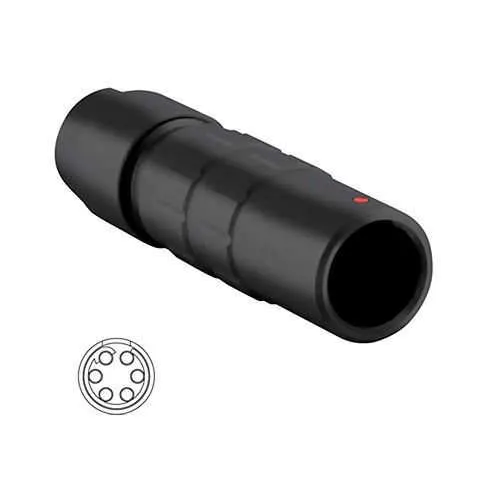

JBXPC0G06MSNDSR Eaton: In line cable receptacle, IP40, size 0, 6 male contacts, cable clamp backshell; JBXPC0G06MSNDSR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G06MSNDSR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
11.69 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland
Feature: IP40/IP68 metallic push-pull housing provides robust protection against dust and moisture, while the push-pull mechanism speeds field connections. Business impact: reduces maintenance cycles and minimizes ingress-related failures, improving machine availability. Application: ideal for in-line cable receptacles in control panels, robotics cells, and conveyor systems operating in harsh environments. Feature: six male contacts in size 0 deliver ample power and signal channels within a compact footprint. Business impact: supports reliable servo, sensor, and actuator connections with low contact resistance, enhancing overall system performance. Application: suitable for servo drives, sensors, and field devices in automation lines, including high-density interconnects. Feature: sealing gland backshell and straight backshell simplify installation and sealing. Business impact: easier field assembly, fewer leak paths, consistent IP protection, and reduced rework. Application: in-line cable receptacles on machinery housings and equipment enclosures. Feature: UL 1977 compliance ensures safety and reliability in industrial control circuits. Business impact: accelerates regulatory clearance and supplier qualification, lowering project risk. Application: connectors used in control panels, safety circuits, and automation equipment. Feature: compact footprint with 38 mm length and 10 x 10 mm dimensions, plus 11.69 g weight. Business impact: enables high-density cabling and easier retrofit in tight spaces. Application: small enclosures, multi-connector interconnects in robotics and packaging lines.
Get a Quick Quote for a Eaton JBXPC0G06MSNDSR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G06MSNDSR?
Enquire Now
FAQs
When integrating the JBXPC0G06MSNDSR into an industrial enclosure, ensure a proper gland seal at the backshell and a compatible mating receptacle in the JBX family. Check the straight backshell alignment for straightforward mounting, verify IP65+ coupling is maintained by the sealing gland, and plan cable routing to minimize bending stresses on the 6-pin interface. The result is reliable ingress protection and consistent electrical performance across temperature and vibration conditions.
Yes. The JBXPC0G06MSNDSR is part of the JBX series and is designed to mate with other JBX elements such as in-line receptacles and corresponding plug components. Compatibility ensures uniform IP protection, mating cycles, and standardized sealing gland interfaces. When selecting accessories, confirm matching backshell type and straight orientation to preserve seal integrity and ease of maintenance.
Key specs include IP40/IP68 protection, six male contacts, a straight backshell, and a sealing gland. The UL 1977 compliance indicates suitability for safety-critical applications. The rugged metallic housing resists wear under repeated mating, vibration, and temperature cycling, while the sealing gland backshell maintains ingress protection. Together, these features deliver consistent signal integrity and longevity in machine tools and conveyors.
Best suited for in-line cable receptacles and equipment-to-cable interconnects in harsh automated environments such as robotics, packaging lines, CNC machinery, and conveyor systems. Its IP40/IP68 rating, six-pin configuration, and sealing gland backshell support reliable power and data transmission in compact enclosures, reducing downtime and enabling high-density interconnect layouts in modern production lines.
Maintenance benefits stem from a sealed, metal housing that minimizes ingress and reduces field servicing. The quick-mate push-pull design shortens connector dwell times during line changes, boosting uptime. While initial costs may be higher than basic connectors, long-term ROI grows through lower maintenance frequency, reduced rework, and enhanced equipment reliability in demanding environments.
