Eaton JBXPC0G06MSSDSR Push-Pull Connector - IP40/IP68
Part Number: JBXPC0G06MSSDSR
Quick Summary
The Eaton Souriau JBXPC0G06MSSDSR push-pull connector securely joins cables in rugged automation and machine-building environments. It addresses sealing reliability, field maintenance downtime, and vibration challenges that frustrate panel designers. With IP40 and IP68 ingress protection and UL 1977 compliance, it delivers robust performance across cabinet interiors and harsh environments. Compact, lightweight, and compatible with the JBX series, it helps system integrators meet standards while reducing assembly time and spare-part costs.
Product Information
Extended Description

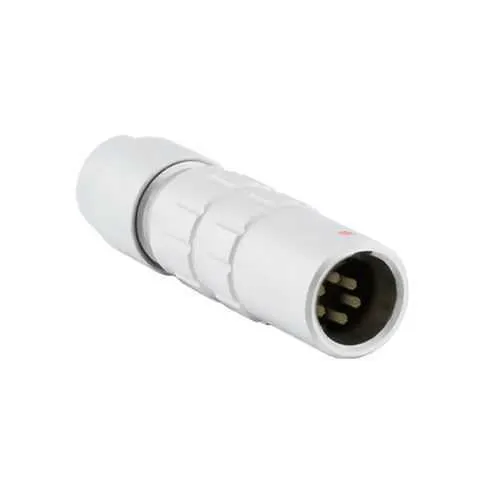

JBXPC0G06MSSDSR Eaton: In line cable receptacle, IP40, size 0, 6 male contacts, cable clamp backshell; JBXPC0G06MSSDSR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G06MSSDSR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
11.69 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland
Feature is a compact metallic push-pull connector designed for harsh industrial conditions. Business Impact is faster, error-free mating and demating, which reduces downtime and labor costs. Application is machine tools, robotics, and automated lines where space is limited and reliability is critical. The IP40/IP68 protection provides reliable operation in dusty or damp environments, cutting field service needs. The Sealing Gland backshell with a cable clamp offers robust strain relief, improving long-term performance in vibratory applications. The 38 mm length and 10x10 mm footprint enable tighter panel layouts, reducing enclosure size and mounting complexity. UL 1977 compliance adds regulatory confidence for safety-critical assemblies. This connector supports six contacts, ensuring adequate signal and power density for mid-stage automation. Compatibility with the JBX series ensures easy sourcing and consistent performance across product families.
Get a Quick Quote for a Eaton JBXPC0G06MSSDSR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G06MSSDSR?
Enquire Now
FAQs
The JBXPC0G06MSSDSR is part of the JBX series and uses the size 0 in-line cable receptacle format with a straight backshell. It mates with standard JBX connectors and backshell components, enabling straightforward upgrades or replacements in existing panels without redesigns. Ensure mating connectors share the same contacts and backshell configuration for a reliable seal.
This connector supports six male contacts and offers IP40 and IP68 ingress protection, suitable for dusty or damp environments. It complies with UL 1977, providing recognized safety performance for industrial control equipment. The sealing gland backshell and cable clamp provide robust strain relief and environmental sealing in rugged installations.
Yes. The combination of a rugged metallic push-pull design, sealed backshell, and compact 38 mm length makes it well-suited for robotics arms, automated conveyors, and intelligent tooling. Its quick-mate capability reduces downtime during assembly and maintenance, while the six-pin configuration supports essential power and signal needs in mid-range automation.
The connector is UL 1977 compliant and features IP ratings of IP40/IP68, indicating protection against dust ingress and immersion in certain liquids. The combination of these ratings supports safe operation within control cabinets and harsh industrial environments, aligning with common regulatory and safety requirements in automation.
The sealing gland backshell and cable clamp provide durable strain relief, reducing cable wear and ingress-related faults. The push-pull mechanism speeds mating cycles, lowering labor costs and downtime. Over a typical lifecycle, these features contribute to lower maintenance intervals and a faster return on investment for automated lines and machinery.
