Eaton JBXPC0G07FSNDSMR Push-Pull Connector - IP40/IP68
Part Number: JBXPC0G07FSNDSMR
Quick Summary
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector provides fast, secure cable connections for rugged industrial equipment. Engineers often struggle with intermittent contacts and difficult mating in tight, vibration-prone installations. This model meets UL 1977 requirements while delivering IP40 and IP68 sealing, and a straight backshell with a sealing gland and optional boot for enhanced protection. The design supports reliable field assembly and long-term maintenance across automation lines. By aligning with standard Wiring & Connectivity configurations, this connector reduces downtime and simplifies supplier qualification, enabling faster changeovers and consistent performance in machinery, packaging lines, and process automation projects.
Product Information
Extended Description

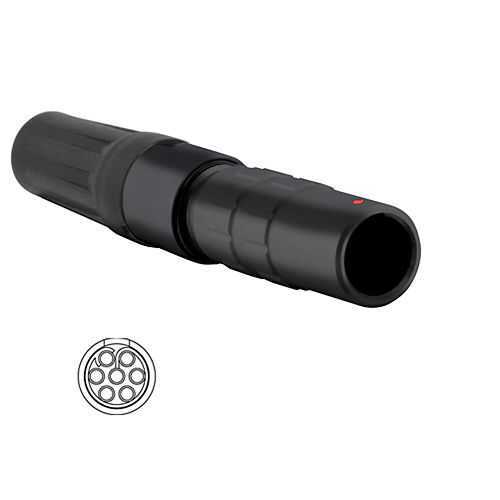

JBXPC0G07FSNDSMR Eaton: In line cable receptacle, IP40, size 0, 7 female contacts, cable clamp protective boot; JBXPC0G07FSNDSMR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G07FSNDSMR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
12.05 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland With Optional Boot
Feature: IP40/IP68 metallic housing and straight backshell provide a rugged, durable interconnect. Impact: minimizes field failures and maintenance costs in dusty, humid, or wash-down environments. Application: ideal for in-line cable receptacles on automated packaging machines and process equipment. Feature: 7 female contacts in a compact 38 mm length. Impact: enables high-density harnessing while preserving easy assembly and serviceability. Application: suitable for multi-wire control and sensing runs on robotics, conveyors, and machine modules. Feature: Sealing gland with an optional boot. Impact: enhances ingress protection without complicating field service. Application: critical in wash-down and dusty environments on dynamic automation lines. Feature: UL 1977 compliance. Impact: simplifies regulatory qualification and supplier management. Application: aligns with safety standards across industrial automation and energy systems. Feature: Robust metal housing with a straight backshell. Impact: supports reliable mating under vibration and reduces rework. Application: broadly applicable across machine tools, packaging, and process equipment to improve uptime and safety.
Get a Quick Quote for a Eaton JBXPC0G07FSNDSMR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G07FSNDSMR?
Enquire Now
FAQs
Install by first inspecting the straight backshell and sealing gland, then align the 7 female contacts with the mate. Slide the plug into the receptacle firmly, using the cable clamp to secure the entry. If you need added ingress protection, fit the optional boot. Confirm UL 1977 compliance and verify the IP40/IP68 sealing remains intact during operation.
Key specs include IP40/IP68 protection in a metallic push-pull design, 7 female contacts, 38 mm length, 10 mm height and width, and 12.05 g weight. The backshell is straight with a sealing gland, and an optional boot. It is UL 1977 listed, suitable for rugged industrial wiring and automation harnesses.
Yes. The IP40/IP68 rating combined with a robust metallic housing and sealing gland means it resists dust, moisture, and vibration. The optional boot adds extra protection, and UL 1977 compliance supports safety requirements in packaging and process automation. Its compact dimensions minimize space conflicts on crowded machinery.
The sealing gland with optional boot reduces ingress and cleaning needs, extending service intervals. Push-pull mating speeds up operations, lowering cycle time and wear on the receptacle. UL 1977 compliance simplifies regulatory documentation, while the 7-contact configuration supports efficient multi-wire harnessing, reducing inventory variety and total cost of ownership across automation projects.
Drawings for JBXPC0G07FSNDSMR are available in Eaton’s repository as JBXPC0GXXMSXDSC.pdf. Access the official drawings from the product page to verify dimensions (38 mm length, 10 mm width, 10 mm height), 7 female contacts, and backshell options before procurement.
