Eaton JBXPC0G07FSSDSMR Push-Pull Connector - IP40/IP68
Part Number: JBXPC0G07FSSDSMR
Quick Summary
The Eaton Souriau JBXPC0G07FSSDSMR is a rugged push-pull connector designed for industrial wiring and control panel applications. Engineers struggle with reliable mating and ingress protection in tight spaces. UL 1977 compliance and IP40/IP68 ratings provide regulatory confidence, while a sealing gland with an optional boot enhances dust and water exclusion. Compact 38 mm length with 7 female contacts simplifies panel integration, reducing assembly time and boosting equipment reliability in automated systems. The 7-female-contact configuration and IP protection enable reliable field wiring and predictable maintenance cycles across automation lines. This makes it an attractive option for OEMs seeking modular, serviceable, and cost-efficient connectivity.
Product Information
Extended Description

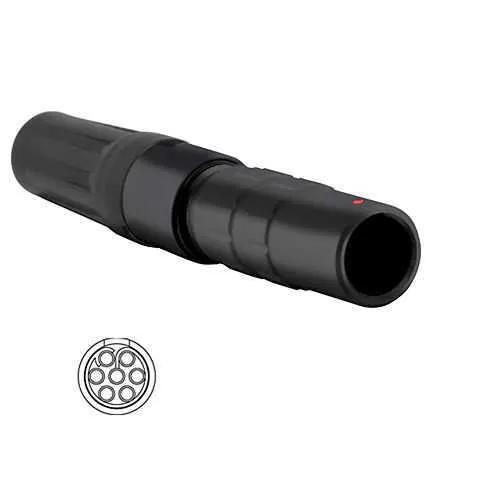

JBXPC0G07FSSDSMR Eaton: In line cable receptacle, IP40, size 0, 7 female contacts, cable clamp protective boot; JBXPC0G07FSSDSMR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G07FSSDSMR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
12.05 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland With Optional Boot
Metallic push-pull construction provides robust EMI shielding and high durability, delivering improved reliability in vibration-heavy environments and enabling safer equipment operation across factory floors. IP40/IP68 protection offers flexible use from indoors to harsher outdoor or washdown areas, reducing protective enclosure needs and potentially lowering total system cost. In-line cable receptacle with a cable clamp protective boot delivers strain relief and moisture exclusion, boosting wiring integrity and minimizing rework in the field. Seven female contacts in size 0 balance compactness with signal and small-power capacity, enabling cleaner harnesses in tight panels and automation equipment. Straight backshell with a sealing gland and option boot simplifies installation in constrained spaces while maintaining a sealed interface. UL 1977 compliance supports safety and regulatory alignment for a wide range of industrial applications. The compact 38 mm length and 10Ă—10 mm footprint help achieve denser panel layouts, reducing overall enclosure size and installation time. Industry-specific use cases in automation, robotics, and packaging equipment benefit from predictable performance, easier maintenance, and lower life-cycle costs.
Get a Quick Quote for a Eaton JBXPC0G07FSSDSMR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G07FSSDSMR?
Enquire Now
FAQs
Yes. It belongs to the JBX series IP40/IP68 family and uses a straight backshell with a sealing gland and optional boot, designed for in-line cable receptacles. With a 38 mm body length and 10Ă—10 mm footprint, it fits common panel cutouts and aligns with Souriau JBX interface standards for seamless mating with compatible plug housings.
The connector provides seven female contacts in size 0, a 38 mm body length, 10 mm width, 10 mm height, and a weight of 12.05 g. It carries IP40/IP68 protection, is UL 1977 compliant, features a straight backshell, and uses a sealing gland with an optional boot—ideal for robust, field-deployable wiring in demanding environments.
Ideal for industrial automation panels, robotics, packaging machinery, and material handling equipment. Its IP protection and sealing options handle dust and moisture exposure on production lines, while the compact footprint and 7-contact configuration support dense harnesses and modular system designs across manufacturing and processing environments.
The JBXPC0G07FSSDSMR is UL 1977 compliant, ensuring safety and reliability for interconnection of electrical equipment and systems. Its IP40/IP68 ratings provide ingress protection suitable for a range of indoor and outdoor industrial settings. These certifications support risk reduction, regulatory alignment, and smoother audits in quality-managed factories.
The cable clamp protective boot offers improved strain relief and moisture exclusion, while the sealing gland backshell improves seal integrity in harsh environments. The rugged metal housing enables reliable mating and disassembly, reducing maintenance time. Coupled with UL 1977 compliance and a compact footprint, this connector translates to faster field service, less rework, and lower total cost of ownership.
