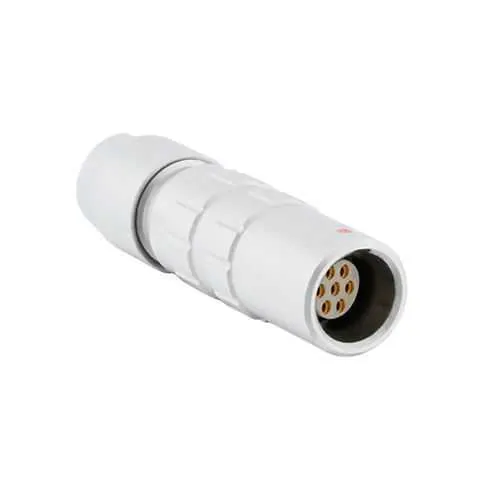

Eaton JBXPC0G07FSSDSR Push-Pull Connector - IP40/IP68
Part Number: JBXPC0G07FSSDSR
Quick Summary
Eaton JBXPC0G07FSSDSR is a push-pull connector designed for IP40/IP68 environments in automation and machinery assemblies. Engineers often struggle with sealing reliability, easy mating, and cable strain in tight enclosures. This connector meets UL 1977 and IP ratings while offering a rugged metallic backshell for harsh environments. Used in control cabinets, robotics, and conveyors, it helps streamline procurement and reduce maintenance costs. By combining IP protection, 7-female contact arrangements, and a sealing gland backshell, it delivers reliable performance across temperature and vibration. For engineers evaluating suppliers, the JBX PC family provides consistent interchangeability, UL 1977 compliance, and robust field support. These attributes translate into faster assembly, lower downtime, and safer, compliant installations—ideal for industrial connectors in automation.
Product Information
Extended Description
JBXPC0G07FSSDSR Eaton: In line cable receptacle, IP40, size 0, 7 female contacts, cable clamp backshell; JBXPC0G07FSSDSR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G07FSSDSR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
12.05 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland
Feature → Business Impact → Application: IP40/IP68 protection enables reliable operation in both indoor and outdoor industrial settings, reducing ingress-related failures and extending service life in control cabinets and machine wiring. This translates to higher uptime and lower maintenance costs in manufacturing lines and packaging equipment. Feature → Business Impact → Application: In-line cable receptacle with 7 female contacts delivers scalable connectivity for multi-wire control circuits, enhancing system reliability while simplifying wiring diagrams used in conveyors and robotics assemblies. Feature → Business Impact → Application: Metallic backshell with sealing gland provides robust environmental sealing and mechanical protection, improving dust and moisture resistance in harsh industrial environments and facilitating cleaner field installations. Feature → Business Impact → Application: Straight backshell and compact 38 mm length support quick, space-efficient assembly in tight cabinet spaces, accelerating panel wiring and reducing install time in automation panels. Feature → Business Impact → Application: UL 1977 compliance ensures regulatory alignment for industrial wiring products, reducing compliance risk during audits and helping procurement teams meet safety standards. Feature → Business Impact → Application: 10 mm width/height, 12.05 g weight, and 7-contact configuration offer a compact footprint suitable for space-constrained machinery, robotics, and process equipment. These characteristics support easier sourcing, interchangeability within the Souriau JBX family, and improved lifecycle support for major automation projects.
Get a Quick Quote for a Eaton JBXPC0G07FSSDSR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G07FSSDSR?
Enquire Now
FAQs
The JBXPC0G07FSSDSR is designed as an in-line cable receptacle with a straight backshell and sealing gland, making it ideal for control cabinets and equipment wiring. Its 38 mm depth and compact 10x10 mm footprint simplify routing in tight spaces, while the 7 female contacts support multi-line control circuits. UL 1977 compliance adds regulatory confidence for industrial installations.
This connector carries UL 1977 compliance and IP ratings of IP40 and IP68, indicating suitable protection against dust and water ingress in varying environments. The combination supports reliability in both indoor control panels and outdoor or harsh environments, aligning with common industrial safety and performance standards.
Yes. The JBXPC0G07FSSDSR combines IP40/IP68 protection with a metallic backshell and sealing gland, delivering rugged sealing and weather resistance suitable for outdoor enclosures, exposed industrial equipment, and machinery subject to vibration and dust. This makes it a solid choice for robotics cells, conveyors, and outdoor control panels.
Key specifications include catalog number JBXPC0G07FSSDSR, 38 mm length, 10 mm width, 10 mm height, weight of 12.05 g, 7 female contacts, IP40/IP68 protection, backshell type Sealing Gland, and backshell angle Straight. It is UL 1977 compliant and designed as an in-line cable receptacle for reliable, space-efficient wiring in automation equipment.
A sealing gland backshell provides robust environmental sealing and strain relief, reducing ingress of dust and moisture while protecting cable exits from mechanical wear. This translates to improved reliability, longer service life, easier maintenance, and safer, more durable installations in industrial automation environments.
