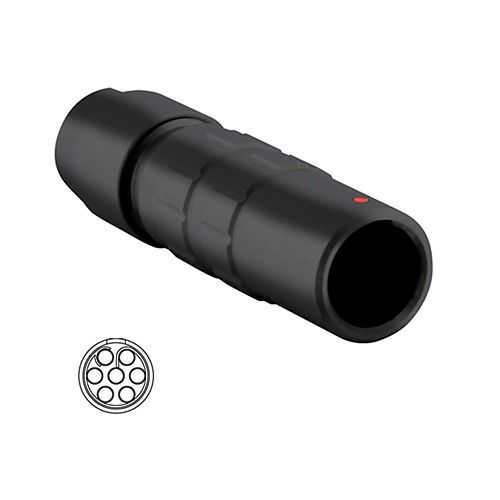

Eaton JBXPC0G07MSNDSR Metallic Push-Pull Connector - IP40/IP68
Part Number: JBXPC0G07MSNDSR
Quick Summary
Eaton Souriau JBX series IP40/IP68 metallic push-pull connector enables fast, secure cable connections in harsh industrial environments. Many engineers contend with lengthy installation times and seal failures that disrupt production lines. With UL 1977 compliance and IP ratings covering IP40 through IP68, the design supports both indoor control panels and outdoor equipment. Its compact 38 mm length, straight backshell, and sealing gland backshell streamline panel integration, reduce spare parts, and improve maintenance intervals. This combination delivers measurable uptime gains and predictable lifecycle costs for automation projects and system integrators. Power is better protected against EMI and moisture, helping maintain signal integrity across the line.
Product Information
Extended Description
JBXPC0G07MSNDSR Eaton: In line cable receptacle, IP40, size 0, 7 male contacts, cable clamp backshell; JBXPC0G07MSNDSR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G07MSNDSR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
11.75 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland
The JBXPC0G07MSNDSR family is built on the Souriau JBX platform, delivering rugged, metallic housing that supports quick engagement and reliable mating in demanding automation environments. The pull-to-lock push-pull action reduces installation time and rework, translating into lower labor costs and faster machine commissioning in control panels, robotics cells, and packaging lines. The sealing gland backshell, combined with IP40/IP68 ratings, provides robust dust and moisture protection, limiting maintenance events and warranty exposure in both indoor plants and weather-exposed outdoor equipment. With 7 male contacts in size zero, the connector supports compact yet capable signal and power routing in dense harness designs, helping engineers meet tighter panel density requirements. Its straight backshell simplifies cable routing and harness assembly, while the option for a cable clamp backshell improves strain relief and seal integrity under flexing loads. UL 1977 compliance adds safety assurance for automation systems, reducing regulatory risk for OEMs and integrators. The 38 mm footprint, 10 mm by 10 mm profile, and 11.75 g weight contribute to higher connector-density layouts, enabling more compact control cabinets and reducing overall system size and cost. This product also aligns with industry standards for durable control interfaces and high-reliability I/O blocks, supporting long-term maintenance planning and component standardization across fleets.
Get a Quick Quote for a Eaton JBXPC0G07MSNDSR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G07MSNDSR?
Enquire Now
FAQs
The JBXPC0G07MSNDSR features a straight backshell and a sealing gland with a cable clamp backshell option, enabling fast, tool-free engagement in control panels and field installations. Its compact 38 mm length fits dense panel layouts, while the seven male contacts support reliable signaling and power routing in automation equipment. Plan for proper mating alignment and strain relief to maximize life.
Key specs include seven male contacts in size 0, a 38 mm product length, 10 mm width and 10 mm height, and a total weight of 11.75 g. The connector is IP40/IP68 rated and UL 1977 compliant, with a straight backshell and sealing gland. This combination supports rugged operation in harsh environments and ensures compatibility with Souriau JBX series interfaces.
Yes. The IP40/IP68 sealing covers indoor to outdoor use, and the sealing gland backshell protects against dust, moisture, and contaminants. UL 1977 compliance adds electrical safety assurance. For outdoor panels, ensure enclosure IP rating matches the interface, and use the cable clamp feature to maintain seal integrity under cable movement.
Compliances include UL 1977, reflecting recognized component status for electrical connectors. The IP40/IP68 ratings provide environmental protection across indoor and outdoor deployments. The unit’s metallic backshell and sealing gland design support durability and compatibility with rugged automation standards, aiding long-term reliability in harsh industrial environments.
Using this connector can reduce assembly time due to quick push-pull mating, reduce spare-part counts with a single seven-contact receptacle, and improve uptime through robust sealing (IP40/IP68) and UL 1977 safety. For OEMs and integrators, the compact form factor enables higher connector density, simplifying harness design and lowering total cost of ownership.
