Eaton JBXPC0G07MSSDSMR Push-Pull Connector - IP40/IP68
Part Number: JBXPC0G07MSSDSMR
Quick Summary
Eaton Souriau JBX series IP40/IP68 metallic push-pull connector enables rugged, reliable interconnects for industrial automation. Engineers often grapple with vibration, sealing integrity, and field maintenance; this connector mitigates those challenges with a robust metal housing and a seal-ready backshell. UL 1977 compliance and IP ratings define performance across IP40 and IP68, while straight backshell and optional boot enhance installation flexibility. Designed for compact control panels and harsh environments, it offers dependable connectivity with a small footprint. The combination of 7 contacts and a sealing-gland backshell supports streamlined harness designs and reduced maintenance costs across machinery and conveyors.
Product Information
Extended Description

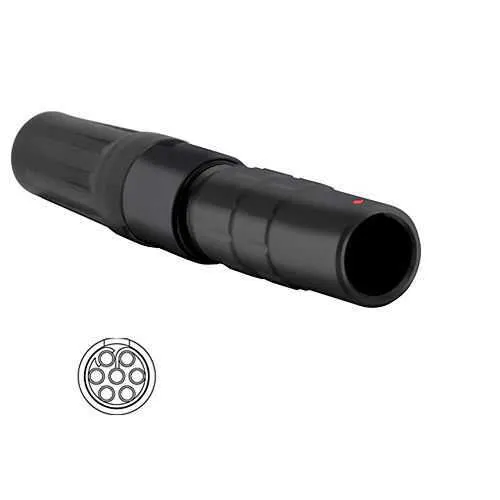

JBXPC0G07MSSDSMR Eaton: In line cable receptacle, IP40, size 0, 7 male contacts, cable clamp protective boot; JBXPC0G07MSSDSMR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G07MSSDSMR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
11.75 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland With Optional Boot
Feature → Business Impact → Application: The rugged metallic housing provides superior vibration resistance, reducing intermittent connections in conveyor systems and robotics, which translates to lower downtime and higher productivity. Application: pick-and-place robots, packaging lines. Feature → Business Impact → Application: IP40/IP68 environmental ratings ensure protection against dust and water ingress, enabling reliable operation in outdoor or wash-down environments, reducing field service calls. Application: outdoor machinery and food processing lines. Feature → Business Impact → Application: 7 male contacts maximize signal density in a compact form factor, simplifying harness design and reducing connector count in machine control panels. Application: CNCs and automated tooling. Feature → Business Impact → Application: UL 1977 compliance provides safety assurance for electrical interconnections, supporting regulatory acceptance and supplier qualification. Application: industrial automation cabinets and safety-critical systems. Feature → Business Impact → Application: Backshell with sealing gland and optional boot offers installation flexibility and extended ingress protection, meeting OEM preferences for booted or bootless configurations. Application: marine, offshore, and outdoor equipment.
Get a Quick Quote for a Eaton JBXPC0G07MSSDSMR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G07MSSDSMR?
Enquire Now
FAQs
This connector uses a straight backshell with an in-line cable receptacle. Align the keying, mate the plug to the receptacle, and secure with the appropriate cable clamp. If using the optional boot, install it before mating to improve ingress protection. Ensure UL 1977 compliance for safety after installation.
The JBXPC0G07MSSDSMR features IP40 and IP68 ratings, indicating protection against solid ingress at the specified levels and ingress of water under testing. This makes it suitable for both dry indoor use and more demanding wash-down or outdoor environments when paired with a sealing gland and boot.
Yes, the connector complies with UL 1977, outlining performance and safety requirements for interconnection devices in industrial controls. This certification supports regulatory compliance, safer installations, and easier supplier qualification in automation projects.
Best suited for rugged automation environments such as robotic cells, packaging lines, and machine controls where vibration resistance, compact form factor, and reliable sealing are critical. The 7-pin configuration supports essential signal and power needs while maintaining a small footprint.
Routine inspection for sealing integrity and boot condition is recommended. With UL 1977 compliance and IP ratings, focus on seals and backshell integrity after exposure to wash-down cycles or vibration. Replacement should consider the optional boot availability to preserve ingress protection during service.
