Eaton JBXPC0G07MSSDSR Push-Pull Connector - UL 1977
Part Number: JBXPC0G07MSSDSR
Quick Summary
The Eaton Souriau JBX series IP40/IP68 metallic push-pull connector enables fast, reliable cable connections in rugged industrial environments. Engineers often struggle with vibration, moisture ingress, and time-consuming field terminations in automation panels. This connector delivers robust mating, sealing gland backshell, and simple retention to reduce downtime, while meeting critical compliance needs. With IP ratings up to IP68 and UL 1977 compliance, it provides proven sealing performance and safety for demanding applications. Its compact 38 mm length and 7-pin configuration support efficient wiring in control cabinets, robotics, and machinery, delivering real business value through lower maintenance costs and improved availability. For wiring and connectivity teams, it offers a dependable, scalable solution for harsh environments.
Product Information
Extended Description

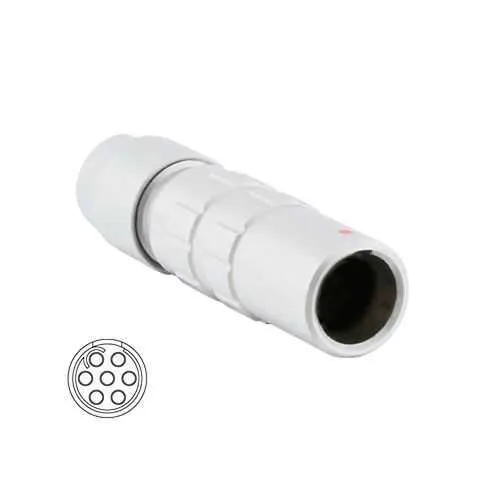

JBXPC0G07MSSDSR Eaton: In line cable receptacle, IP40, size 0, 7 male contacts, cable clamp backshell; JBXPC0G07MSSDSR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G07MSSDSR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
11.75 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland
IP protection and rugged metallic construction provide superior dust and moisture resistance, reducing ingress-related failures and extending panel life. This directly translates to higher uptime and lower maintenance costs in outdoor or vibration-prone environments; ideal for machines, conveyors, and outdoor control panels. The push-pull mating mechanism enables fast, tool-free connections, accelerating assembly and servicing while minimizing the risk of improper terminations during maintenance windows. Its compact in-line receptacle design at 38 mm deep with a 10x10 mm footprint fits tight spaces without compromising performance, making it well suited for crowded control cabinets and robotic harnesses. Seven male contacts support reliable power and signal transmission in a single connector, simplifying harness design and reducing panel complexity. The sealing gland backshell simplifies sealing and strain relief, improving reliability in wet or dusty settings. UL 1977 compliance and IP40/IP68 ratings address common regulatory and environmental requirements, helping procurement and engineering teams meet standards while protecting capital equipment investments. Installation compatibility with standard cable clamps and straight backshell orientation minimizes training needs for technicians and reduces installation risk. In practice, this connector minimizes field issues related to ingress, vibration, and misalignment, delivering measurable uptime improvements for industrial automation projects and machinery builds.
Get a Quick Quote for a Eaton JBXPC0G07MSSDSR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G07MSSDSR?
Enquire Now
FAQs
For installation, ensure the in-line receptacle is mounted in a straight orientation with the sealing gland backside engaged to maintain IP integrity. Use compatible backshell and cable clamp components to secure the harness, and verify the 7-pin contact alignment prior to mating. The compact 38 mm depth helps fit tight panel cavities, while UL 1977 compliance provides assurance during regulatory reviews.
Its IP40/IP68 ratings and rugged metallic push-pull construction resist dust, moisture, and vibration. The sealing gland backshell further protects the interface from ingress, reducing maintenance cycles in outdoor equipment, heavy machinery, and high-shock environments commonly found in automation and packaging lines.
Ideal for machine builders, robotics harnesses, and automation panels where space is at a premium but reliability cannot be compromised. The 7-pin configuration supports essential power and signal paths in motor drives, sensors, and actuator assemblies, while its compact size fits crowded control cabinets.
The JBXPC0G07MSSDSR carries UL 1977 compliance and IP ratings up to IP68, indicating robust protection against environmental ingress. These certifications support safer, regulation-aligned interconnections in industrial control systems and machinery wiring.
The combination of fast mate/demate via push-pull, reliable sealing with a gland-backed backshell, and a compact footprint reduces installation time and field downtime. Its durable metallic build minimizes replacement costs in demanding environments, delivering measurable uptime gains and lower total cost of ownership for automation projects.
