Eaton JBXPC0G08FSNDSR Metallic Push-Pull Connector - IP40/IP68
Part Number: JBXPC0G08FSNDSR
Quick Summary
JBXPC0G08FSNDSR is a rugged metallic push-pull connector designed for IP40/IP68 protection in industrial wiring and automation applications. Engineers frequently face moisture ingress, vibration, and tight spaces, and this solution mitigates those challenges with a sealing gland backshell and precise mating. UL 1977 compliance, robust IP ratings, and a straight backshell ensure reliable performance across harsh environments. This combination reduces maintenance costs and accelerates harness assembly, while remaining compatible with Souriau JBX ecosystems to streamline design-in and procurement.
Product Information
Extended Description

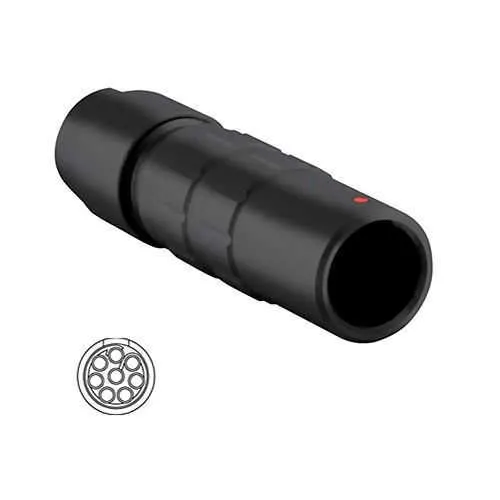

JBXPC0G08FSNDSR Eaton: In line cable receptacle, IP40, size 0, 8 female contacts, cable clamp backshell; JBXPC0G08FSNDSR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G08FSNDSR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
12.13 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland
Feature: IP40/IP68 protection and a metallic push-pull design provide robust ingress protection and fast, tool-free mating. Business Impact: reduces field failures, minimizes downtime, and improves line uptime. Application: robotic automation cells, conveyors, and packaging lines where environmental exposure and quick cycle times matter. Feature: Sealing gland backshell delivers enhanced sealing without extra components. Business Impact: simplifies installation, lowers inventory needs, and improves long-term reliability in washdown and harsh environments. Application: food & beverage, pharmaceutical machinery, and heavy industry equipment that require dependable ingress protection. Feature: 8 female contacts in a compact size 0 format with 38 mm length. Business Impact: saves panel space and reduces harness complexity, enabling denser control cabinets and lighter cables. Application: compact control panels, servo drives, and distributed I/O nodes. Feature: Straight backshell design eases alignment and mating in tight installations. Business Impact: reduces assembly time and the risk of misalignment during field service. Application: machine retrofits and panel wiring in space-constrained environments. Feature: UL 1977 compliance and Souriau JBX family compatibility. Business Impact: ensures regulatory readiness and a smoother procurement/design-in process with common parts. Application: certified automation equipment and legacy systems upgrading to IP-rated connectivity.
Get a Quick Quote for a Eaton JBXPC0G08FSNDSR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G08FSNDSR?
Enquire Now
FAQs
When installing the JBXPC0G08FSNDSR, ensure the backshell is correctly seated and the sealing gland is tightened to the recommended torque. Verify IP rating integrity by inspecting the backshell and connectors for proper engagement. Use compatible mating receptacles from the JBX family to maintain UL 1977 compliance and prevent ingress points in harsh environments.
Yes. The JBXPC0G08FSNDSR is part of Eaton Souriau JBX series and is designed for interoperability within that family. It supports consistent mating interfaces, backshell sealing, and similar IP ratings, enabling designers to upgrade or expand harnesses without reworking connector systems.
Key specs include eight female contacts in a size 0 format, a 38 mm length, 10 mm width and height, straight backshell, and sealing gland. It carries UL 1977 compliance and provides IP40/IP68 protection, making it suitable for rugged automation panels and control cabinets.
Applications with exposure to dust, moisture, or washdown, such as robotics, conveyors, and packaged goods equipment, benefit from UL 1977 and IP sealing. The combination supports safer, compliant operation and reduces maintenance in harsh industrial environments.
The connector reduces downtime through quick mating and robust sealing, lowers maintenance costs via reliable ingress protection, and simplifies spares management with a single, compatible family. In high-mix, high-duty environments, these gains translate to faster line changeovers and improved overall equipment efficiency.
