Eaton JBXPC0G08FSSDSR Push-Pull Connector - IP40/IP68
Part Number: JBXPC0G08FSSDSR
Quick Summary
The Eaton Souriau JBX series IP40/IP68 metallic push-pull connector is engineered for fast, reliable connections in harsh industrial environments. Engineers often contend with sealing integrity and lengthy field assembly when space is limited. UL 1977 compliance, IP40/IP68 ratings, and a compact 38 mm length deliver safety, durability, and straightforward integration for panels and machinery. By combining rugged performance with a small footprint, this connector supports lean harnessing and faster maintenance, delivering measurable cost savings across automation, robotics, and material handling applications.
Product Information
Extended Description

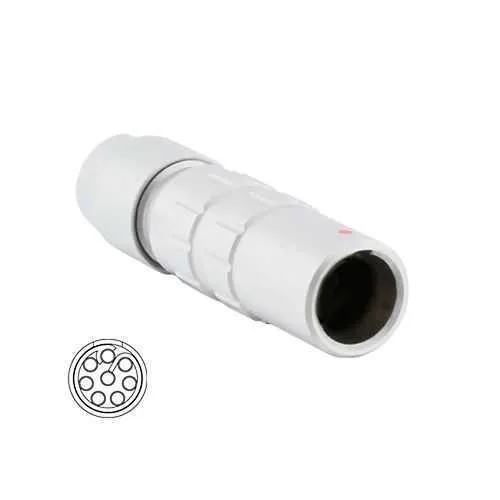

JBXPC0G08FSSDSR Eaton: In line cable receptacle, IP40, size 0, 8 female contacts, cable clamp backshell; JBXPC0G08FSSDSR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G08FSSDSR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
12.13 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland
Feature → Business Impact → Application: The metallic push-pull mating design supports quick, tool-free connections, reducing maintenance downtime and labor costs. Application: Ideal for assembly lines, robotics, and field-service scenarios where fast, secure mating matters.\n\nFeature: IP40/IP68 sealing provides robust protection against dust and moisture across in-line cable receptacles. Business Impact: Extends service intervals and minimizes enclosure contamination risks. Application: Equipment exposed to varying environmental conditions, including outdoors and damp facilities.\n\nFeature: UL 1977 compliance ensures electrical safety and performance for industrial connectors. Business Impact: Simplifies compliance audits and accelerates procurement cycles. Application: Control panels, safety enclosures, and certified machinery.\n\nFeature: Compact form factor with 38 mm length and 10x10 mm footprint fits tight installations. Business Impact: Frees panel space and reduces harness complexity. Application: Small enclosures, compact automation modules, and lightweight harness designs.\n\nFeature: Sealing gland backshell and straight backshell angle support reliable cable termination and easier routing. Business Impact: Improves gasket integrity and routing efficiency. Application: Cable harness assemblies in equipment where neat, sealed terminations are critical.\n\nFeature: 8 female contacts in size 0 receptacle enables flexible signal/power distribution. Business Impact: Supports common automation I/O densities while preserving connector ruggedness. Application: In-line receptacles for sensors, actuators, and control wiring.
Get a Quick Quote for a Eaton JBXPC0G08FSSDSR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G08FSSDSR?
Enquire Now
FAQs
This connector uses a straight backshell and sealing gland to simplify assembly in restricted areas. Align the mating halves, insert fully, and operate the push-pull mechanism for a secure latch without tools. The 38 mm length and compact 10x10 mm envelope help you fit it behind panels or inside compact harnesses.
Yes. It carries UL 1977 compliance for industrial connectors and features IP40 and IP68 sealing, providing dust and moisture protection across in-line receptacle usage. This combination supports safer operation in control panels, equipment enclosures, and outdoor installations, reducing risk during qualification testing and end-user commissioning. Its UL 1977 listing also simplifies supplier audits and procurement approvals.
Best suited for in-line cable receptacles in harsh automation environments, including robotics, machine tools, conveyors, and control panels. The 8 female contacts support efficient signal and power distribution, while the compact 38 mm length and sealed backshell reduce harness bulk and enhance reliability in space-constrained installations. Its UL 1977 conformity and IP ratings also support safety-critical applications in packaging lines and automated welders.
Compatibility within the JBX family is straightforward due to consistent backshell interfaces and sealing gland options. Ensure mating with the correct size and contact arrangement to prevent misalignment and leakage. Using the straight backshell with 8-contact configuration aligns with common automation harnesses and reduces redesign risk. Additionally, verify cable clamp backshell compatibility for secure strain relief in dynamic applications.
Investing in the JBXPC0G08FSSDSR reduces downtime thanks to quick push-pull mating and fewer field-service steps. Its durable UL 1977 and IP ratings lower warranty claims and rework costs, while the compact size simplifies harnessing, potentially lowering cable and panel costs. Over a machine’s lifecycle, this translates to higher uptime and lower total cost of ownership.
