Eaton Souriau JBX push-pull JBXPC0G08MSSDSR Push-Pull Connector - UL 1977/IP40/IP68
Part Number: JBXPC0G08MSSDSR
Quick Summary
Eaton Souriau JBX push-pull JBXPC0G08MSSDSR Push-Pull Connector is a rugged mating interface for harsh industrial automation settings. Engineers often struggle with sealing, mounting complexity, and maintenance in IP-rated enclosures. UL 1977 certification and IP ratings IP40 and IP68 provide reliability across modular automation lines. This design integrates with standard wiring and connectivity workflows, delivering compactness and ease of service for production floors.
Product Information
Extended Description

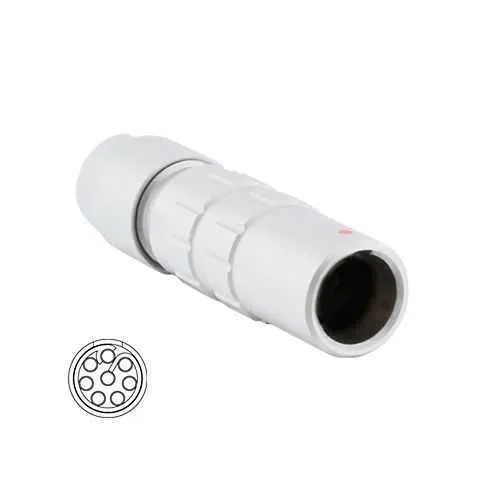

JBXPC0G08MSSDSR Eaton: In line cable receptacle, IP40, size 0, 8 male contacts, cable clamp backshell; JBXPC0G08MSSDSR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC0G08MSSDSR
Product Length/Depth
38 mm
Product Height
10 mm
Product Width
10 mm
Product Weight
11.81 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland
Feature: IP40 / IP68 metallic push-pull construction. Business Impact: Delivers reliable sealing across changing environments, reducing ingress-related downtime and maintenance costs. Application: Robotics, machine tools, and packaging lines that demand dependable, high-cycle mating and fast field repair. Feature: Compact form factor with a 38 mm length and 10x10 mm profile (weighing 11.81 g). Business Impact: Minimizes panel intrusion and simplifies harness routing. Application: Space-constrained automation panels where every millimeter matters and fast integration is essential. Feature: Eight male contacts for multi-line control. Business Impact: Reduces harness complexity and assembly time while supporting higher channel density. Application: Servo drives, sensors, and distributed I/O networks in compact automation architectures. Feature: Backshell with Sealing Gland and Straight geometry. Business Impact: Ensures robust sealing and predictable cable routing during installation and maintenance. Application: Inline cable receptacle configurations requiring straightforward mating alignment. Feature: UL 1977 compliance with IP40/IP68 protection. Business Impact: Meets industry safety standards and environmental resilience, lowering compliance risk. Application: Industrial automation, machine tools, and packaging lines demanding dependable performance. Feature: Cable clamp backshell design. Business Impact: Provides reliable strain relief and secure termination, reducing field failures. Application: Dynamic production lines with flexible cabling and frequent connectivity checks.
Get a Quick Quote for a Eaton JBXPC0G08MSSDSR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC0G08MSSDSR?
Enquire Now
FAQs
Install starts with selecting the correct panel cutout and aligning the 38 mm long, 10x10 mm body. Use the cable clamp backshell to secure the conductors and ensure the Sealing Gland backshell provides the IP40/IP68 seal. Mating should be performed with clean, aligned connectors to avoid cross-threading, followed by a final inspection to confirm seal integrity and cable strain relief.
This connector is UL 1977 compliant and rated IP40/IP68, offering safety and environmental protection across indoor and outdoor environments. These certifications assure electrical safety, reliable sealing against dust and moisture, and compatibility with industrial automation standards, reducing risk in robotics, packaging lines, and machine tools.
Yes. The 8-contact, compact JBXPC0G08MSSDSR design supports multi-line control in tight spaces, with a rugged metallic housing and push-pull mating for quick field connections. Its sealing gland backshell and straight backshell simplify routing and maintenance in robotics and automated packaging, delivering dependable performance in high-cycle environments.
UL 1977 compliance reduces regulatory risk, while IP40/IP68 ratings minimize ingress-related downtime and weather-related failures. Together, they lower maintenance costs, extend lifecycle, and improve uptime in automated lines, yielding a faster return on investment through fewer replacements and consistent performance in diverse operating conditions.
Prioritize clean mating surfaces, use the sealing gland backshell correctly, and ensure proper cable clamp engagement for strain relief. The straight backshell and IP sealing design simplify alignment during mating, enabling reliable performance in inline cable receptacle configurations and reducing rework on installation and maintenance.
