Eaton JBXPC1G02FCNDSMR Push-Pull Connector - IP40/IP68
Part Number: JBXPC1G02FCNDSMR
Quick Summary
The Eaton Souriau JBXPC1G02FCNDSMR is a rugged metallic push-pull connector designed for harsh industrial environments in automation systems. It addresses common pain points like moisture ingress, seal wear, and the downtime associated with field maintenance. With UL 1977 compliance and IP40/IP68 protection, along with a sealing gland and optional boot, this connector delivers dependable environmental sealing and long service life. Designed for panel wiring and inline receptacle use, it supports quick, secure mating in compact form factors, contributing to safer, faster installations and lower lifecycle costs for industrial projects.
Product Information
Extended Description
JBXPC1G02FCNDSMR Eaton: In line cable receptacle, IP40, size 1, 2 female contacts, cable clamp protective boot; JBXPC1G02FCNDSMR
Product Name

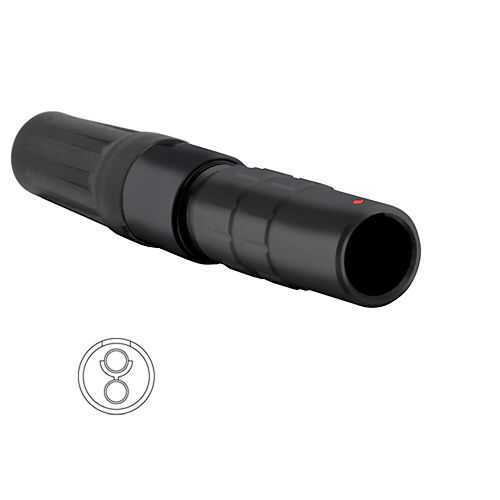

Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC1G02FCNDSMR
Product Length/Depth
42 mm
Product Height
13 mm
Product Width
13 mm
Product Weight
21.33 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland With Optional Boot
Feature: IP40/IP68 rated metallic backshell with sealing gland and optional boot. Business Impact: Provides robust environmental protection against dust, splash, and immersion, reducing ingress-related failures and maintenance costs. Application: Ideal for conveyors, robotics, and outdoor equipment where reliable connectivity matters. Feature: Compact 42 mm length with 13 mm square footprint and light 21.33 g weight. Business Impact: Space-saving, easier harness routing, and reduced weight on moving components, improving assembly efficiency and performance in crowded control panels. Application: Dense automation cabinets and compact machinery assemblies. Feature: 2 female contacts for straightforward signaling and power transfer. Business Impact: Simplified mating and maintenance while delivering essential connectivity for small-form electrical loads. Application: Control circuits and signal distribution in automation wiring. Feature: Backshell type Sealing Gland With Optional Boot and Straight backshell angle. Business Impact: Flexible sealing configurations for additional protection and simple alignment during installation. Application: Harsh-environment panels and cabling harnesses. Feature: UL 1977 compliance. Business Impact: Meets recognized safety standards for interconnects in equipment, enabling compliant system integration. Application: Industrial automation and electrical device assemblies. Feature: In-line receptacle model with protective boot and cable clamp functionality. Business Impact: Secure cable retention, reduced cable movement, and improved dust/moisture ingress protection. Application: Field installations and machine wiring where reliability matters.
