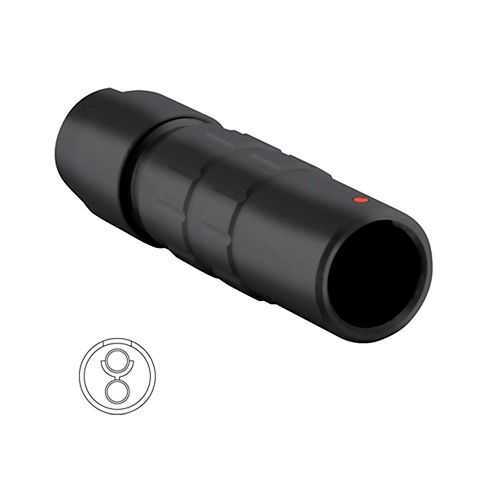

Eaton JBXPC1G02FCNDSR Push-Pull Connector - IP40/IP68
Part Number: JBXPC1G02FCNDSR
Quick Summary
Eaton JBXPC1G02FCNDSR is a rugged push-pull connector designed for in-line cable receptacle applications in harsh environments. Engineers often struggle with maintaining seal integrity while delivering reliable mating under vibration in control panels and machines. This solution delivers IP40/IP68 sealing and UL 1977 compliance, addressing essential industry standards for rugged equipment. The compact 42 mm length and 13×13 mm footprint enable straightforward panel routing without bulky interfaces. By standardizing on this connector, teams can reduce spare parts, minimize field failures, and improve uptime across automated production lines.
Product Information
Extended Description
JBXPC1G02FCNDSR Eaton: In line cable receptacle, IP40, size 1, 2 female contacts, cable clamp backshell; JBXPC1G02FCNDSR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC1G02FCNDSR
Product Length/Depth
42 mm
Product Height
13 mm
Product Width
13 mm
Product Weight
21.33 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland
Feature → The in-line cable receptacle with IP40/IP68 sealing provides a robust, weatherproof interface that protects sensitive electronics in challenging environments. Business Impact → This reduces unscheduled downtime and extends equipment life, leading to lower maintenance costs and improved asset availability in manufacturing cells. Application → Ideal for rugged automation panels and machine enclosures where ingress protection is critical. Feature → The JBXPC1G02FCNDSR uses a straight backshell with a sealing gland for dependable sealing and straightforward field assembly. Business Impact → Simplified installation lowers labor costs and minimizes commissioning time. Application → Suitable for quick-mate, secure connections on conveyors, robotics cells, and power-distribution panels. Feature → Two female contacts (size 1) in a compact 42 mm length layout reduces wiring complexity and part variety. Business Impact → Fewer spare parts and faster harness fabrication translate to tangible project savings. Application → Fits compact control interfaces and modular automation racks where space is at a premium. Feature → Metallic construction delivers improved durability and EMI performance in harsh environments. Business Impact → Enhanced equipment resilience lowers replacement cycles and supports regulatory compliance. Application → Automotive, packaging, and process automation environments with rough handling or vibration. Feature → UL 1977 compliance confirms safety and performance under standard industry conditions. Business Impact → strengthens procurement confidence and simplifies vendor qualification. Application → Industrial control cabinets, robotics, and machinery where safety certifications matter. Feature → Compatibility with Souriau JBX series ecosystems enables standardized maintenance and spare-part strategies. Business Impact → Streamlined sourcing and reduced total cost of ownership over multiple lines. Application → Global manufacturing sites adopting a common connector family for multi-line deployments.
