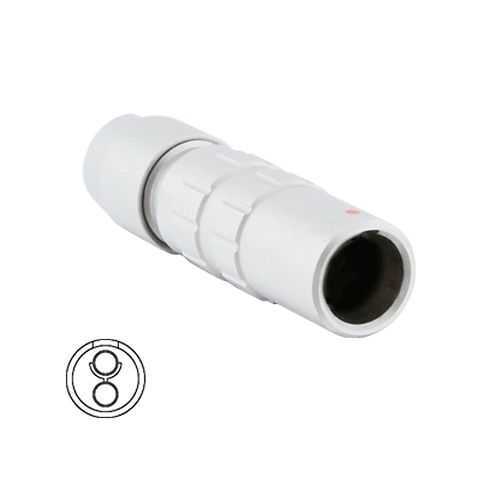

Eaton JBXPC1G02FCSDSR Push-Pull Connector - IP40/IP68
Part Number: JBXPC1G02FCSDSR
Quick Summary
The Eaton Souriau JBX push-pull connector is a rugged IP-rated interface for industrial control panels and equipment. Wiring and field maintenance can be time-consuming when connectors fail under harsh conditions, leading to costly downtime. This solution delivers UL 1977 compliance with IP40 and IP68 sealing, providing dependable operation in dusty, wet, or wash-down environments. Its compact 42 mm length, light 21.33 g weight, and straight backshell design support easy panel integration and streamlined harnessing, while the cable clamp backshell enhances strain relief. For machine builders and automation projects, it enables reliable connectivity without sacrificing space or serviceability, aligning with lean maintenance and faster time-to-market.
Product Information
Extended Description
JBXPC1G02FCSDSR Eaton: In line cable receptacle, IP40, size 1, 2 female contacts, cable clamp backshell; JBXPC1G02FCSDSR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC1G02FCSDSR
Product Length/Depth
42 mm
Product Height
13 mm
Product Width
13 mm
Product Weight
21.33 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland
Feature is a rugged, metallic push-pull connector with IP40/IP68 sealing → Business Impact is enhanced reliability in challenging environments, reducing field failures and downtime → Application is machine enclosures and process equipment where ingress protection and fast mating are critical. Feature is 2 female contacts with cable clamp backshell → Business Impact is secure, strain-relieved connections that withstand vibration, lowering rework costs and warranty claims → Application is control panels and sensor harnesses in automotive, packaging, and food & beverage equipment. Feature is straight backshell and Sealing Gland type → Business Impact is straightforward installation and robust sealing at the mating interface, enabling clean panel routing and easy field serviceability → Application is panel-to-cable interfaces in compact installations. Feature is UL 1977 compliance and IP rating coverage (IP40/IP68) → Business Impact is regulatory alignment and safer operation in hazardous environments, reducing compliance risk and documentation effort for inspections → Application is safety-critical automation and industrial networks. Feature is 42 mm length / 13 mm width and 13 mm height with 21.33 g weight → Business Impact is space-saving integration and lightweight harnessing that improves overall machine efficiency and energy usage → Application is space-constrained control cabinets and mobile machinery. Feature is Sealing Gland backshell option with cable clamp → Business Impact is reliable sealing and secure cable termination that mitigates ingress during cleaning or wash-down cycles → Application is harsh production lines and environmental controls.
Get a Quick Quote for a Eaton JBXPC1G02FCSDSR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC1G02FCSDSR?
Enquire Now
FAQs
This straight-back, Sealing Gland backshell connector is designed for straightforward panel mounting with a cable clamp backshell for reliable strain relief. Verify mating alignment and ensure the backshell is securely fastened to maintain IP sealing during maintenance.
Key specifications include 42 mm product length, 13 mm height, 13 mm width, weight 21.33 g, IP40/IP68 rating, 2 female contacts, and UL 1977 compliance. Backshell type is Sealing Gland with Straight orientation, and the backshell supports a cable clamp for strain relief.
Yes. The connector complies with UL 1977, making it suitable for interconnection needs within automation and control cabinets, particularly where reliable sealing and field-serviceability are required.
Ideal for industrial automation panels, machine builders, packaging lines, and process control systems where robust IP sealing (IP40/IP68) and quick-connect push-pull mating improve reliability and reduce downtime.
IP40 provides protection against solid ingress at a basic level, while IP68 offers high-level protection against water ingress in harsher environments. This makes the connector versatile for wash-down zones, dusty environments, and vibration-prone machinery.
