Eaton JBXPC1G02FSNDSMR Push-Pull Connector - IP40/IP68
Part Number: JBXPC1G02FSNDSMR
Quick Summary
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector provides rugged, sealed connections for industrial automation enclosures. Engineers often confront moisture ingress, misalignment, and downtime during field repairs, which erode productivity. This design meets stringent safety and environmental requirements with UL 1977 compliance and IP protection, plus a sealing gland with an optional boot for enhanced ingress protection. As part of Eaton's Wiring & Connectivity portfolio, it integrates smoothly with existing harnesses and backplanes, delivering reliable performance while reducing installation time and total cost of ownership. The combination of compact form, robust sealing, and straightforward installation supports technicians and procurement teams alike in demanding industrial settings.
Product Information
Extended Description

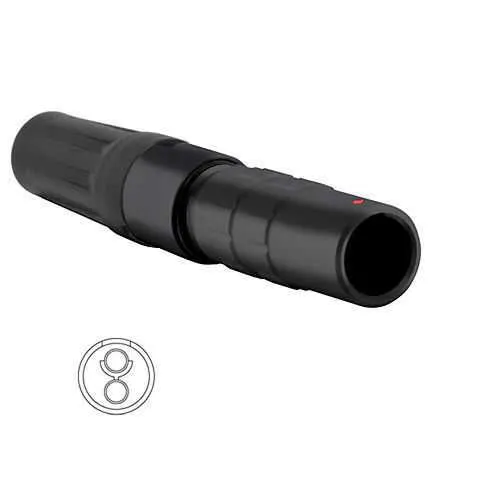

JBXPC1G02FSNDSMR Eaton: In line cable receptacle, IP40, size 1, 2 female contacts, cable clamp protective boot; JBXPC1G02FSNDSMR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC1G02FSNDSMR
Product Length/Depth
42 mm
Product Height
13 mm
Product Width
13 mm
Product Weight
21.49 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland With Optional Boot
Feature: IP40/IP68 protection and metallic construction → Business Impact: protects critical connections from dust, moisture, and harsh handling, reducing field failures and warranty costs. Application: outdoor machinery, wet processing lines, and harsh-environment packaging equipment. Feature: In-line cable receptacle with 2 female contacts → Business Impact: simplifies harness design and mating reliability, shortening assembly time and improving connector longevity. Application: control panels and cabinet wiring in harsh plants. Feature: 42 mm length / 13 mm width / 13 mm height with 21.49 g weight → Business Impact: compact footprint yields easier routing in crowded enclosures and lighter weight for reduced installation effort and fatigue. Application: space-constrained automation assemblies and mobile equipment. Feature: Backshell straight with sealing gland and optional boot → Business Impact: straightforward mating alignment and enhanced ingress protection without tools; boot option adds additional environmental sealing where vibration is present. Application: rugged conveyors, metalworking and materials handling. Feature: UL 1977 compliance → Business Impact: assurance of safety and interoperability within industrial control systems, supporting compliance-driven procurement. Application: UL-listed control panels and safety-critical machinery. Industry context and practical insight: technicians value the 42 mm straight-back system that aligns quickly with standard Souriau JBX housings, while design engineers appreciate the predictable sealing performance across IP ratings. This combination translates to measurable uptime gains, reduced maintenance windows, and smoother changeovers in high-demand manufacturing lines.
Get a Quick Quote for a Eaton JBXPC1G02FSNDSMR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC1G02FSNDSMR?
Enquire Now
FAQs
The JBXPC1G02FSNDSMR is part of the Souriau JBX series and matches the standard IP40/IP68 metallic push-pull family. The straight backshell and sealing gland with optional boot facilitate straightforward alignment with compatible housings, reducing mis mating and installation time. Ensure the catalog number aligns with the same series and backshell configuration for best results.
Key specs include IP40/IP68 protection, 2 female contacts, 42 mm length, 13 mm width, 13 mm height, and a weight of 21.49 g. It carries UL 1977 compliance and uses a sealing gland with optional boot. The backshell is straight, simplifying mating and enabling reliable sealing across vibration-heavy environments.
Ideal for industrial automation, material handling, and packaging machinery where moisture, dust, and harsh conditions threaten connections. It suits in-line cable receptacles on control panels, enclosures, and outdoor equipment, delivering reliable performance in harsh environments while supporting compact, easy-to-route wiring harnesses.
The connector is UL 1977 compliant, indicating suitability for industrial control equipment interconnections. Its IP40/IP68 ratings provide protection against dust and immersion in specified conditions. The sealing gland and optional boot expand ingress protection, aiding compliance with hostile environments and safety requirements.
By combining robust sealing with a lightweight, compact form, it reduces maintenance downtime and simplifies replacements. Quick mating/demating and a straightforward installation path minimize labor costs, while UL 1977 compliance and durable construction lower warranty exposure and improve long-term uptime in demanding plants.
