Eaton JBXPC1G02FSNDSR Push-Pull Connector - IP40 / IP68
Part Number: JBXPC1G02FSNDSR
Quick Summary
Eaton JBXPC1G02FSNDSR is a rugged push-pull connector designed for field-borne cable assemblies in industrial automation. Engineers often struggle with reliable mating cycles, moisture ingress, and time-consuming sealing in harsh environments. This device delivers IP40 and IP68 protection, UL 1977 compliance, and a sealing gland backshell to address those challenges in a compact, metallic enclosure. By combining a straight backshell with a size-1 footprint, it enhances wiring & connectivity in control panels while reducing installation time and field maintenance costs. The result is a proven, field-ready solution for robust automation deployments and equipment updates.
Product Information
Extended Description

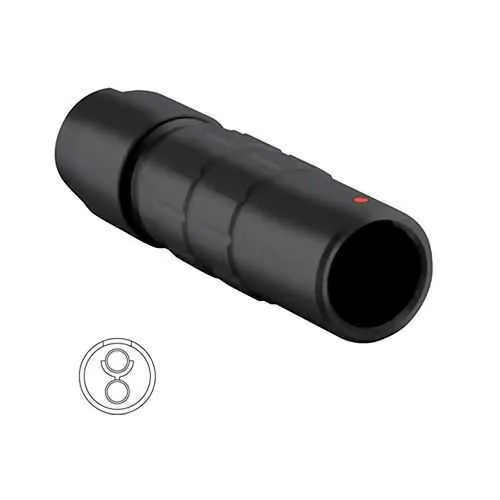

JBXPC1G02FSNDSR Eaton: In line cable receptacle, IP40, size 1, 2 female contacts, cable clamp backshell; JBXPC1G02FSNDSR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC1G02FSNDSR
Product Length/Depth
42 mm
Product Height
13 mm
Product Width
13 mm
Product Weight
21.49 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland
Feature: IP40/IP68 metallic push-pull design enables rugged environmental protection. Benefit: Improves reliability in harsh industrial settings and reduces sealing failures, lowering maintenance intervals. Application: Suitable for control panels, robotics, and conveyor systems where weather and dust exposure are common. Feature: 2 female contacts within a compact size-1 receptacle. Benefit: Enables efficient wiring in tight cabinet spaces while preserving signal integrity and mating force. Application: Ideal for inline cable receptacles in small-form-factor automation assemblies. Feature: Sealing Gland backshell with a cable clamp. Benefit: Delivers secure cable termination and superior ingress protection, reducing rework and warranty claims. Application: Field-installable wiring connections in rugged environments. Feature: UL 1977 compliance. Benefit: Meets recognized safety standards for connectors in signaling, safety, and switchgear applications, supporting regulatory adherence. Application: Electrical safety-critical equipment and compliant machine builds. Feature: Straight backshell option. Benefit: Eases installation and alignment during panel mounting, minimizing tooling and installation time. Application: Panel-wiring and cabinet integrations in automated lines. Feature: 42 mm length and 13 mm width/height with 21.49 g weight. Benefit: Lightweight, compact footprint preserves enclosure space and overall system weight budgets. Application: Space-constrained automation and mobile equipment.
