Eaton JBXPC1G02FSSDSMR Push-Pull Connector - IP40/IP68
Part Number: JBXPC1G02FSSDSMR
Quick Summary
The Eaton Souriau JBXPC1G02FSSDSMR push-pull connector provides robust, IP-rated cabling for industrial automation. It is designed for harsh environments where frequent mating cycles and mechanical stress challenge seals and connectors. With UL 1977 compliance and IP40/IP68 ratings, the assembly remains protected from dust and water while maintaining reliable performance. Its compact size and optional sealing boot simplify installation on cramped panels and robotic assemblies, delivering cost-effective, maintenance-friendly connectivity for machine builders and system integrators.
Product Information
Extended Description

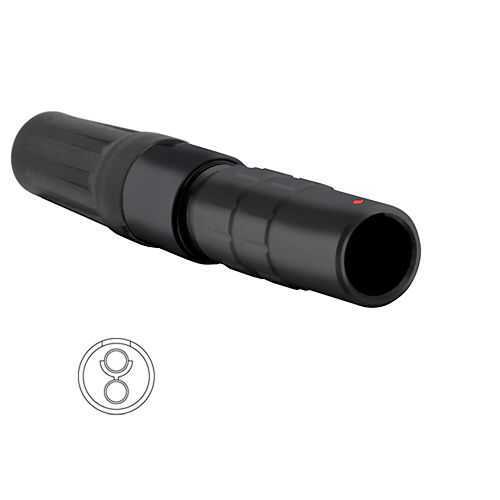

JBXPC1G02FSSDSMR Eaton: In line cable receptacle, IP40, size 1, 2 female contacts, cable clamp protective boot; JBXPC1G02FSSDSMR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC1G02FSSDSMR
Product Length/Depth
42 mm
Product Height
13 mm
Product Width
13 mm
Product Weight
21.49 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland With Optional Boot
Feature: IP40/IP68 protection in a metallic push-pull connector design. Business Impact: Prolonged service life in dusty, washdown, and vibration-prone environments, reducing downtime and replacement costs. Application: Control cabinets, packaging lines, and automation equipment where environmental exposure is uncertain. Feature: Size 1 with 42 mm length and 13 mm width/height, 2 female contacts. Business Impact: Enables high-density panel layouts and straightforward wiring for two-signal circuits, speeding installation and test cycles. Application: Compact machinery interfaces and small automation nodes. Feature: Straight backshell and sealing gland with optional boot. Business Impact: Simplifies mating alignment, enhances ingress protection during service, and provides flexible sealing options to match use-case requirements. Application: Robotic grippers, conveyor modules, and field-installed junctions. Feature: In-line cable receptacle with cable clamp protective boot. Business Impact: Improves strain relief, reduces cable movement damage, and lowers maintenance overhead. Application: Harsh production lines and remote sensor networks. Feature: UL 1977 compliance and metal construction. Business Impact: Meets industry safety standards and delivers durable, long-life connectors suitable for critical automation tasks. Application: Industrial wiring and connectivity across industrial automation and machine-building environments.
Get a Quick Quote for a Eaton JBXPC1G02FSSDSMR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC1G02FSSDSMR?
Enquire Now
FAQs
The JBXPC1G02FSSDSMR uses a straight backshell and in-line receptacle design, with a size 1 footprint and 42 mm length. This ensures straightforward integration into standard panel cutouts and common cable routing schemes. The connector accepts two female contacts and a protective boot option, facilitating secure mating and reliable strain relief in crowded control cabinets.
Key specs include IP40/IP68 protection, UL 1977 compliance, and a two-contact configuration. The metal housing provides rugged durability, while the sealing gland and optional boot maintain environmental protection during operation and maintenance. These features support consistent signal integrity in automation equipment, robotics, and packaging lines.
Yes. The JBXPC1G02FSSDSMR is well-suited for robotics and conveyor systems due to its IP ratings, compact size, and two-female-contact configuration. Its straight backshell and cable clamp boot simplify installation on tight spaces, ensuring reliable mating under dynamic motion and minimizing downtime from seal degradation.
The connector is UL 1977 compliant and rated IP40/IP68, indicating suitability for industrial environments with dust and moisture exposure. The metallic construction and backshell sealing options support regulatory requirements for electrical equipment in control cabinets and machinery assemblies.
Maintenance is simplified by a robust sealing gland with optional boot, which reduces ingress risk during field servicing. The durable metal housing and known mating/reassembly cycle of the push-pull design help extend service life, lowering replacement costs and maximizing uptime across manufacturing lines.
