Eaton JBXPC1G02MCNDSMR Push-Pull Connector - UL 1977
Part Number: JBXPC1G02MCNDSMR
Quick Summary
JBXPC1G02MCNDSMR is a metal push-pull inline cable receptacle from Eaton Souriau, built for rugged industrial wiring and machine control panels. Engineers often face challenges with mating reliability, environmental sealing, and quick field replacement in harsh environments. This connector delivers robust IP40 inline protection and IP68 sealing when properly assembled with the sealing gland and optional boot, while UL 1977 compliance supports safer, standards-aligned deployments. Its compact 42 mm length and 13 mm width/height enable tight panel layouts without compromising contact density, and the two male contacts simplify harnessing in small control loops. By aligning with the Souriau JBX family, it supports scalable automation builds and faster procurement for multi-line installations.
Product Information
Extended Description

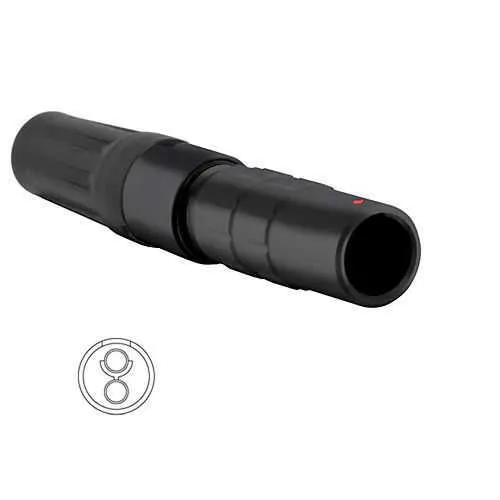

JBXPC1G02MCNDSMR Eaton: In line cable receptacle, IP40, size 1, 2 male contacts, cable clamp protective boot; JBXPC1G02MCNDSMR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC1G02MCNDSMR
Product Length/Depth
42 mm
Product Height
13 mm
Product Width
13 mm
Product Weight
20.96 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland With Optional Boot
Feature: Metallic push-pull design with a rugged housing delivers reliable mating under vibration. Business Impact: faster, tool-free connections reduce commissioning time and wear on cables in high-cycle automation. Application: perfect for automation panels, robotics, and conveyor systems. Feature: IP40 inline protection with IP68 sealing when mated with the sealing gland and boot. Business Impact: protects sensitive electronics from dust and moisture and enables immersion-ready assemblies. Application: harsh factory floors, outdoor enclosures, and wet process lines. Feature: Compact footprint — 42 mm length, 13 mm width, 13 mm height, weight 20.96 g. Business Impact: saves panel space and enables multi-connector layouts in limited bays. Application: space-constrained control cabinets and distributed I/O networks. Feature: UL 1977 compliance. Business Impact: simplifies approval processes and procurement for industrial wiring. Application: control panels, machine builders and systems integrators. Feature: Backshell options—straight backshell with sealing gland and optional boot for enhanced cable strain relief. Business Impact: installation flexibility and improved ingress protection in varied routing scenarios. Application: field wiring with diverse cable routing, including vertical and horizontal layouts. Feature: Two male contacts for streamlined harnessing with the option to add a cable clamp protective boot. Business Impact: reduces harness complexity and supports clean termination in compact installations. Application: automated equipment and control panels.
Get a Quick Quote for a Eaton JBXPC1G02MCNDSMR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC1G02MCNDSMR?
Enquire Now
FAQs
The JBXPC1G02MCNDSMR uses a sealing gland with an optional boot and supports a straight backshell configuration, which facilitates a reliable seal and simple cable routing. With two male contacts and inline receptacle design, it is compatible with standard Souriau JBX cables and provides a compact 42 mm length, making it suitable for space-constrained panel installations.
IP40 applies to the inline receptacle in typical dry or dusty environments, while IP68 sealing is achieved when the assembly uses the correct backshell and boot, creating a fully protected, immersion-ready joint. This dual rating supports both open-line and enclosure-integrated use in harsh manufacturing environments.
Yes. UL 1977 certification confirms the connector’s suitability for industrial control wiring applications. The combination of UL 1977 compliance with IP ratings and metal construction provides a reliable solution for control panels, automation racks, and machine-wloor wiring where safety and durability matter.
The receptacle measures 42 mm in length and 13 × 13 mm in cross-section, with a weight of 20.96 g. This compact footprint minimizes panel depth and allows denser connector layouts, while the two-male-contact configuration keeps harnessing simple, ideal for space-limited control cabinets and modular automation architectures.
Mount with the straight backshell and attach the sealing gland with the optional boot to maximize cable strain relief. Ensure proper mating with the corresponding plug, verify IP sealing integrity after assembly, and use appropriate cable clamps to prevent movement that could compromise the seal. This approach supports reliable, long-term operation in demanding environments.
