Eaton JBXPC1G02MCNDSR Push-Pull Connector - IP40/IP68
Part Number: JBXPC1G02MCNDSR
Quick Summary
Eaton Souriau JBX series IP40/IP68 push-pull connector enables fast, secure cable connections in harsh industrial environments. Engineers often struggle with moisture ingress, downtime from tool changes, and sealing reliability in rugged installations. UL 1977 compliance, IP40/IP68 ratings, and a sealing-gland backshell deliver dependable performance in factory automation, transportation, and process equipment. This makes it ideal for wiring & connectivity upgrades, delivering faster assembly, improved IP ratings, and reduced field maintenance costs. Our guidance reflects hands-on experience with cost-to-connectivity tradeoffs, ensuring compliance beyond the basics and simplifying supplier ecosystems. Engineers can count on predictable performance across temperature ranges and rugged field mounting.
Product Information
Extended Description

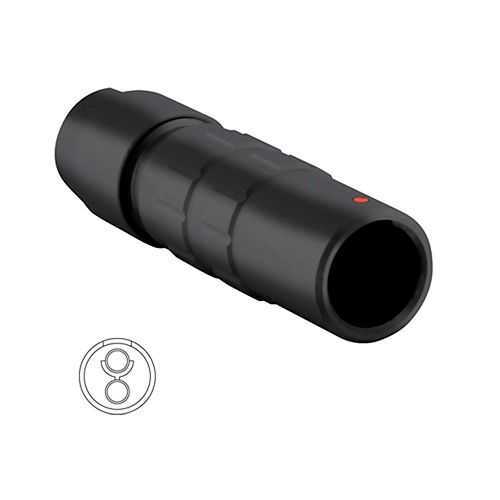

JBXPC1G02MCNDSR Eaton: In line cable receptacle, IP40, size 1, 2 male contacts, cable clamp backshell; JBXPC1G02MCNDSR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC1G02MCNDSR
Product Length/Depth
42 mm
Product Height
13 mm
Product Width
13 mm
Product Weight
20.96 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland
IP rated, metallic push-pull construction provides rugged environmental protection and quick, tool-free mating. The 42 mm length and compact 13x13 mm footprint enable tight panel layouts in equipment cabinets and mobile machinery, while the two-male-contact configuration supports compact signaling and power interfaces. This combination reduces assembly steps and minimizes panel space without sacrificing reliability. The sealing gland backshell provides robust ingress protection and reliable strain relief, simplifying cable sealing during field installs and service. With a straight backshell orientation, installers can align harnesses predictably, avoiding misfits and rework. This reduces field service time and supports consistent performance across vibration-heavy applications. UL 1977 compliance supports interoperability and safety in control panels and automated systems, while the IP40 to IP68 range offers configuration flexibility for indoor and outdoor equipment. The JBXPC1G02MCNDSR’s two-male-contact design and cable clamp backshell simplify wiring and mechanical stability, and the mating with compatible JBX components is straightforward for technicians. Users benefit from repeatable connections and faster swap-outs in maintenance routines. Operational benefits translate to measurable gains: reduced downtime during tool changes, fewer ingress-related fault calls, and simplified supplier management through a single, UL-listed family.
Get a Quick Quote for a Eaton JBXPC1G02MCNDSR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC1G02MCNDSR?
Enquire Now
FAQs
Yes. The JBXPC1G02MCNDSR is a member of Eaton Souriau’s JBX family and uses standard JBX interfaces, ensuring compatibility with other JBX components. This model features size 1, two male contacts, a straight backshell with a sealing gland, and a cable clamp backshell. Confirm mating with the corresponding JBX receptacles and verify UL 1977 compliance for your system.
The connector carries UL 1977 compliance and IP40/IP68 ratings (depending on configuration), which validate electrical safety and environmental protection for industrial equipment. These certifications simplify procurement, support regulatory audits, and enable reliable operation in factory floors, transportation, and process lines where moisture, dust, or vibration can impact performance.
The sealing gland backshell provides robust ingress protection, helping seal cables and maintain strain relief during field installs. Its straight backshell orientation simplifies harness alignment and mating with compatible JBX components, reducing misfits and rework. This design feature shortens service time and enhances long-term reliability in vibration-prone environments.
Yes. The push-pull coupling enables rapid mating and un-mating, while the compact 42 mm length and 13x13 mm footprint fit tight panel spaces common in automation cabinets. The 2-male-contact configuration reduces the number of individual terminations, speeding wiring and enabling faster maintenance without compromising signal or power integrity.
The combination of IP sealing, durable metal housing, and UL 1977 compliance lowers field fault rates, decreases downtime during tool changes, and extends service intervals. The mating reliability of the push-pull design minimizes rework, while the sealing gland backshell reduces ingress-related repairs, delivering measurable lifecycle cost reductions in harsh industrial sites.
