Eaton JBXPC1G02MCSDSMR IP40/IP68 Push-Pull Connector - UL 1977
Part Number: JBXPC1G02MCSDSMR
Quick Summary
The Eaton Souriau JBXPC1G02MCSDSMR is a rugged IP40/IP68 metallic push-pull connector designed for inline cable receptacle applications in harsh industrial environments. Engineers often struggle with maintaining reliable seals and secure mating in compact, vibration-prone control panels, which can lead to moisture ingress and downtime. This connector lineup emphasizes IP protection, stainless-like durability, and a straightforward assembly path, helping you reduce field rework. With UL 1977 compliance and a sealing gland option (boot available), it balances safety, performance, and ease of installation. By leveraging its compact 42 mm length and 13x13 mm footprint, you can optimize panel density and minimize wiring complexity while ensuring robust service life in conveyors, robotics, and packaging lines.
Product Information
Extended Description

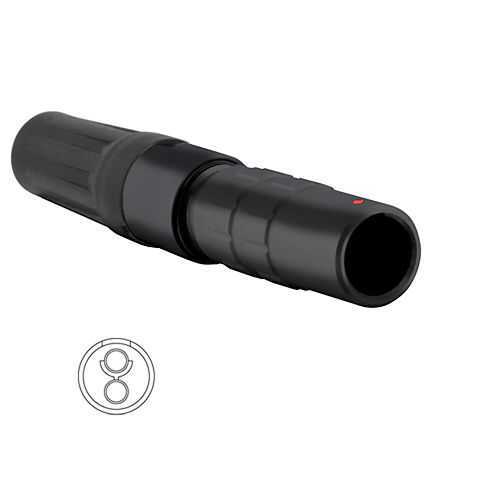

JBXPC1G02MCSDSMR Eaton: In line cable receptacle, IP40, size 1, 2 male contacts, cable clamp protective boot; JBXPC1G02MCSDSMR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC1G02MCSDSMR
Product Length/Depth
42 mm
Product Height
13 mm
Product Width
13 mm
Product Weight
20.96 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland With Optional Boot
Feature: IP40/IP68 protection in a single metallic push-pull connector. Business Impact: Protects critical signal lines from dust and water ingress, reducing failure rates and warranty costs. Application: Suitable for harsh factory floors and outdoor enclosures where moisture and particulates are common. Feature: 42 mm product depth with 13 mm width and height. Business Impact: Enables dense mounting in tight panel areas, increasing channel density and reducing enclosure size. Application: Robotic arms and machine-vision systems with space-constrained junctions. Feature: 2 male contacts with a cable receptacle format and a cable clamp protective boot option. Business Impact: Simplifies wiring, improves pull-out resistance, and enhances strain relief, lowering maintenance. Application: In-line cabling for power and signal runs in automation equipment. Feature: Backshell straight with sealing gland and optional boot. Business Impact: Ensures reliable sealing during repeated mating cycles and exposure to vibration, especially in high-duty cycles. Application: Control panels, process machines, and packaging lines where frequent mating is expected. Feature: UL 1977 compliance. Business Impact: Demonstrates adherence to recognized safety and reliability standards, easing regulatory approvals and supplier audits. Application: Electrical and data connectors for industrial automation systems. Feature: Weight around 20.96 g and compact footprint. Business Impact: Reduces overall mass and inertia, improving installation times and cabling management in confined spaces. Application: Automotive and general assembly lines requiring lightweight, robust connectors.
