Eaton JBXPC1G02MCSDSR Push-Pull Connector - IP40/IP68
Part Number: JBXPC1G02MCSDSR
Quick Summary
JBXPC1G02MCSDSR is a high-performance push-pull connector designed for rugged, reliable wiring in industrial automation and machinery. Engineers often wrestle with sealing integrity, EMI protection, and field serviceability in IP-rated connectors. UL 1977 compliance and IP40/IP68 ratings underpin safe, compliant operation across control panels and automation racks. This solution pairs robust mechanical performance with easy installation and compatibility for Souriau/JBX ecosystems, delivering predictable reliability, faster commissioning, and lower total cost of ownership. Its straight backshell, sealing gland design, and 2 contacts support clean harness routing, while the cable clamp backshell simplifies assembly under field conditions, reducing maintenance downtime.
Product Information
Extended Description

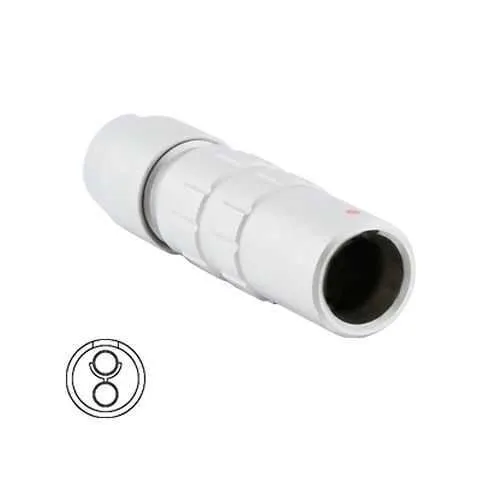

JBXPC1G02MCSDSR Eaton: In line cable receptacle, IP40, size 1, 2 male contacts, cable clamp backshell; JBXPC1G02MCSDSR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC1G02MCSDSR
Product Length/Depth
42 mm
Product Height
13 mm
Product Width
13 mm
Product Weight
20.96 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland
Feature: IP40/IP68 protection with a metallic push-pull interface. Business Impact: delivers dust-tight and water-protected performance with sustained mating cycles and vibration resistance. Application: robotics cells, packaging lines, and automated conveyors where exposure to dust and moisture is common. Feature: 2 male contacts in an inline cable receptacle. Business Impact: enables compact interface design and reliable signal/power transmission with minimal footprint. Application: small-form control panels and sensor/actuator networks where space is at a premium. Feature: Straight backshell and sealing gland backshell. Business Impact: simplifies installation and provides a robust seal against contaminants. Application: panel-mounted equipment and cabinet wiring in harsh environments. Feature: UL 1977 compliant design. Business Impact: supports regulatory and safety requirements, reducing risk during audits and deployments. Application: industrial control cabinets and safety-critical installations. Feature: Lightweight, compact form factor (42 mm length, 13 mm width/height, 20.96 g). Business Impact: minimizes panel cutouts and harness weight for improved installation efficiency. Application: high-density wiring harnesses in automation lines. Feature: Cable clamp backshell for secure strain relief. Business Impact: improves cable management and long-term reliability under vibration. Application: field wiring and dynamic machinery environments.
Get a Quick Quote for a Eaton JBXPC1G02MCSDSR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC1G02MCSDSR?
Enquire Now
FAQs
Installation begins with confirming IP40/IP68 protection and ensuring the cable clamp backshell is secured. Thread the cable through the inline receptacle, mate the connectors with a straight backshell alignment, then tighten the gland and backshell fasteners to achieve sealed integrity. This process supports reliable EMI performance and long-term sealing in dusty or damp industrial environments.
UL 1977 compliance indicates the connector is suitable for use in electrical equipment beyond consumer products, including industrial control panels and programmable logic environments. It provides assurance of electrical safety, material quality, and performance under typical industrial operating conditions, helping simplify regulatory approvals and vendor qualification.
Best-fit applications include robotics cells, packaging lines, conveyors, and automation cabinets where frequent mating cycles occur and environmental exposure is a concern. The 2 male contacts, sealing gland backshell, and compact 42 mm length support high-density wiring while maintaining reliability in dusty or moisture-prone areas.
IP40 indicates protection against solid objects greater than 1.0 mm but limited water ingress, while IP68 denotes higher protection against continuous immersion under specified conditions. The JBX PC1G02MCSDSR design accommodates both, ensuring dust resistance in standard operation and superior water ingress protection in harsher environments.
The push-pull mechanism enables quick, tool-free mating and unmating, reducing commissioning time and wear on mating interfaces. Sealing gland backshells reduce dust and moisture ingress, lowering maintenance intervals. Overall, expected ROI includes reduced downtime, fewer field service visits, and longer connector life in demanding automation environments.
