Eaton JBXPC1G02MSNDSMR Push-Pull Connector - IP40/IP68
Part Number: JBXPC1G02MSNDSMR
Quick Summary
Eaton Souriau JBXPC1G02MSNDSMR is a rugged push-pull connector that enables quick, reliable cabling in harsh industrial settings. Field teams often battle slow terminations and sealing issues that drive downtime and rework; this device is designed to mitigate those pain points with robust sealing and a compact footprint. The solution complies with UL 1977 and supports ingress protection through IP40 and IP68 capabilities, aligning with harsh-environment requirements. Its straight backshell and optional boot simplify installation while preserving serviceability, making it a practical fit for control panels, automation cabinets, and machine-to-harness connections. For engineers prioritizing reliability, compatibility, and ease of maintenance, this connector integrates smoothly into the Souriau JBX ecosystem and broader Wiring & Connectivity strategies.
Product Information
Extended Description

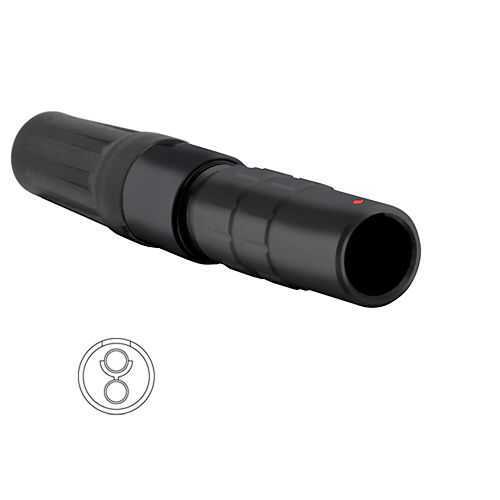

JBXPC1G02MSNDSMR Eaton: In line cable receptacle, IP40, size 1, 2 male contacts, cable clamp protective boot; JBXPC1G02MSNDSMR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC1G02MSNDSMR
Product Length/Depth
42 mm
Product Height
13 mm
Product Width
13 mm
Product Weight
21.12 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland With Optional Boot
Feature → Business Impact → Application: The IP40/IP68 metallic backshell with a sealing gland and optional boot provides reliable ingress protection across dry, dusty, and wet environments, reducing field failures and warranty costs while enabling longer service intervals for control panels and robotics stations. Application: panel-mounted controls in manufacturing lines benefit from fewer maintenance events and extended component life. Feature → Business Impact → Application: A compact 42 mm product length with a 13 mm width and 13x13 mm contact footprint allows dense harness routing and streamlined assembly, cutting installation time and material costs in crowded cabinet interiors. Application: automation cabinets and machine tools where space is at a premium. Feature → Business Impact → Application: Straight backshell and sealing options support straightforward cable entry and repeated mating cycles, simplifying field upgrades and service in dynamic assembly lines. Application: modular machinery and conveyors requiring reliable, repeatable connections. Feature → Business Impact → Application: UL 1977 compliance paired with IP ratings builds regulatory confidence for safety-critical equipment, easing procurement approval and reducing compliance risk. Application: control systems and panel assemblies in regulated environments. Feature → Business Impact → Application: Push-pull mating offers quick, secure connections that minimize downtime during maintenance or reconfiguration, delivering faster changeovers on automated lines. Application: line-side harnesses and robotic endpoints where rapid connection changes are common.
Get a Quick Quote for a Eaton JBXPC1G02MSNDSMR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC1G02MSNDSMR?
Enquire Now
FAQs
Installation is streamlined by the straight backshell and sealing gland with an optional boot, which guides cables cleanly and ensures a reliable seal. The compact 42 mm length and 13x13 mm footprint help manage harness routing in dense panels, while the push-pull mechanism accelerates mating and disconnection without tools in many maintenance scenarios.
Key specs include IP40/IP68 ingress protection, 2 male contacts, 42 mm product length, 13 mm product width and height, and a weight around 21 g. The unit features a straight backshell and a sealing gland with an optional boot, plus UL 1977 compliance to support safety and performance in industrial applications.
Yes, UL 1977 compliance supports safety and reliability for signaling and power connections in industrial systems. It is typically used in control cabinets, automation panels, and machines exposed to dust, moisture, or vibration, where rugged, quick-connect connectivity improves uptime and reduces maintenance complexity.
It addresses panel space constraints with its compact footprint, simplifies cable entry with the sealing gland and optional boot, and speeds maintenance through the push-pull mating design. Its robust metal backshell also provides vibration resistance and durability suitable for conveyors, robotics, and heavy equipment environments.
By reducing setup and changeover times with quick mating, lowering downtime from sealing issues, and enabling reliable field connections, the connector delivers faster maintenance, improved line throughput, and lower total cost of ownership. The UL 1977 and IP ratings further minimize compliance-related risk in regulated or harsh environments.
