Eaton JBXPC1G02MSNDSR Push-Pull Connector - IP40/IP68
Part Number: JBXPC1G02MSNDSR
Quick Summary
Eaton JBXPC1G02MSNDSR is a rugged push-pull connector for harsh industrial environments and automated machinery control panels. Designers often struggle with maintaining sealing integrity during fast mating cycles in confined spaces. The JBX series delivers UL 1977 compliance and IP40/IP68 protection in a compact, straight backshell design with a sealing gland, enabling reliable performance in enclosures and demanding environments. This combination supports scalable automation deployments, reduces downtime, and simplifies sourcing within the Souriau JBX ecosystem while aligning with overall equipment efficiency goals.
Product Information
Extended Description

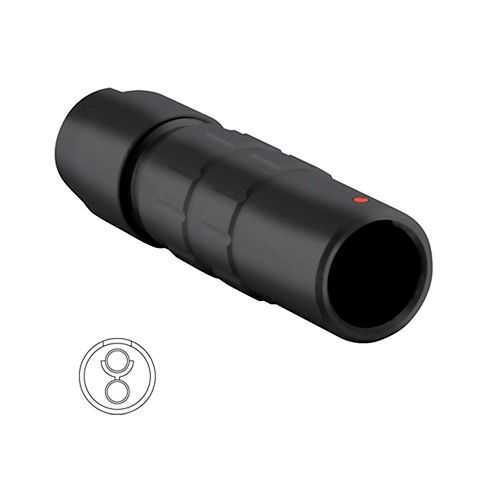

JBXPC1G02MSNDSR Eaton: In line cable receptacle, IP40, size 1, 2 male contacts, cable clamp backshell; JBXPC1G02MSNDSR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC1G02MSNDSR
Product Length/Depth
42 mm
Product Height
13 mm
Product Width
13 mm
Product Weight
21.12 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland
Feature → Business Impact → Application: IP40/IP68 protection with sealing gland backshell delivers ingress protection and long-term reliability, reducing maintenance intervals in dusty or damp environments and ensuring compliant operation within control cabinets and robotic cells. Application: automation panels, machine tools, and outdoor equipment benefit from reduced field service calls and extended mean time between failures. Feature → Business Impact → Application: 42 mm length, 13 mm width, and 13 mm height provide a compact footprint that frees panel space and simplifies routing in tight installations. Application: compact enclosures and modular automation racks where every millimeter counts. Feature → Business Impact → Application: 2 male contacts with a straight backshell facilitates straightforward wiring and quick field assembly, improving installation efficiency and lowering labor costs. Application: inline connections in conveyors, feeders, and multi-axis machines. Feature → Business Impact → Application: cable clamp backshell offers strain relief and secure routing, minimizing wear on conductors and reducing rework due to movement or vibration. Application: heavy-duty automation lines and remotely mounted devices. Feature → Business Impact → Application: UL 1977 compliance provides regulatory assurance and safer integration into commercial and industrial systems, accelerating procurement cycles. Application: safety-critical equipment and systems integration in automotive, packaging, and process industries. Feature → Business Impact → Application: compatibility with the JBX-series ecosystem ensures supply chain continuity and easier parts substitution, reducing design churn. Application: system integrators consolidating spares and expanding mixed fleets.
