Eaton JBXPC1G02MSSDSMR IP40/IP68 Push-Pull Connector - UL
Part Number: JBXPC1G02MSSDSMR
Quick Summary
The Eaton Souriau JBXPC1G02MSSDSMR is a rugged IP40/IP68 push-pull connector designed for harsh industrial environments. In demanding installations, moisture ingress and cable strain can drive unplanned downtime; this connector addresses those pain points with robust sealing and a protective boot option. UL 1977 compliance alongside IP ratings, and a sealing gland with optional boot, provide reliable protection across control panels, machines, and field devices. A compact footprint and quick-mating design support efficient assembly and easier maintenance, helping you reduce total cost of ownership. The in-line cable receptacle format with two male contacts enables compact, modular connections in crowded electrical cabinets, while sustaining long-term performance in demanding automation environments.
Product Information
Extended Description

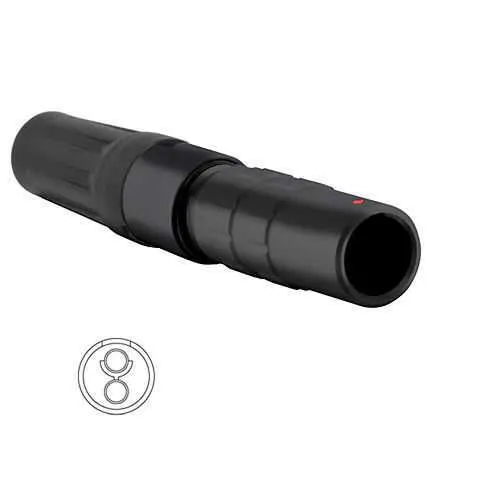

JBXPC1G02MSSDSMR Eaton: In line cable receptacle, IP40, size 1, 2 male contacts, cable clamp protective boot; JBXPC1G02MSSDSMR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC1G02MSSDSMR
Product Length/Depth
42 mm
Product Height
13 mm
Product Width
13 mm
Product Weight
21.12 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland With Optional Boot
Feature: IP40/IP68 rating and metallic push-pull design. Business impact: delivers broad environmental protection and durable mating in dusty, wet, or washdown conditions, reducing field failures and warranty costs. Application: ideal for control panels and robotic interfaces where rugged connectivity is essential. Feature: In-line cable receptacle with two male contacts. Business impact: simplifies routing and mating integrity, cutting assembly time and human error. Application: compact automation equipment and sensor interfaces where space is at a premium. Feature: Sealing gland with optional boot and cable clamp protective boot. Business impact: enhances seal integrity and cable retention under vibration, lowering maintenance frequency and downtime. Application: harsh industrial environments where robust cabling is critical. Feature: Straight backshell with a 42 mm length and a 13 mm footprint. Business impact: enables tight panel layouts and quick replacement, improving installation speed and serviceability. Application: control cabinets with space constraints. Feature: UL 1977 compliance and Src-standard safety alignment. Business impact: supports North American safety compliance and procurement acceptance, reducing project risk. Application: industrial control applications needing verified safety and performance.
Get a Quick Quote for a Eaton JBXPC1G02MSSDSMR
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JBXPC1G02MSSDSMR?
Enquire Now
FAQs
The JBXPC1G02MSSDSMR uses a straight backshell and an in-line cable receptacle footprint of 42 mm by 13 mm, enabling side-by-side mounting in tight panels. The Sealing Gland With Optional Boot and protective boot on the cable clamp minimize ingress paths, allowing straightforward routing and reduced installation time in crowded enclosures.
This connector supports IP40 and IP68 environmental ratings, providing dust protection and robust ingress protection for challenging environments. It carries UL 1977 compliance, making it suitable for a wide range of control and automation applications that require recognized safety standards.
Yes. The metallic push-pull design, two male contacts, and compact footprint are well-suited for control panels, robotics interfaces, and field devices where reliable mating, quick disconnection, and space efficiency are critical. The sealing gland with an optional boot adds additional protection in dynamic, vibration-heavy environments.
Key compliance includes UL 1977, which covers interconnection components for industrial control equipment. The IP rating (IP40/IP68) and the robust sealing solution also support industry acceptance in harsh environments, helping with procurement and compliance audits.
The combination of a sealing gland with an optional boot, protective boot on the cable clamp, and a compact, durable backshell reduces ingress risk and mechanical wear. This translates to fewer maintenance outages, lower replacement costs, and improved uptime for automation lines and control systems over the product lifecycle.
