Eaton JBXPC1G03FCNDSMR Push-Pull Connector - IP40/IP68
Part Number: JBXPC1G03FCNDSMR
Quick Summary
The Eaton Souriau JBX push-pull connector delivers rugged, quick-connect capability for industrial machinery and automation panels. This design helps prevent downtime caused by mis-matched parts, ingress contamination, and difficult field servicing. UL 1977 compliance and IP40/IP68 ratings ensure safe, reliable performance in harsh environments. With a straight backshell and sealing gland options (including an optional boot), installation is faster and more robust, reducing field errors and spare-part waste. In practice, this translates to higher uptime, easier maintenance, and lower total cost of ownership on demanding automation lines.
Product Information
Extended Description

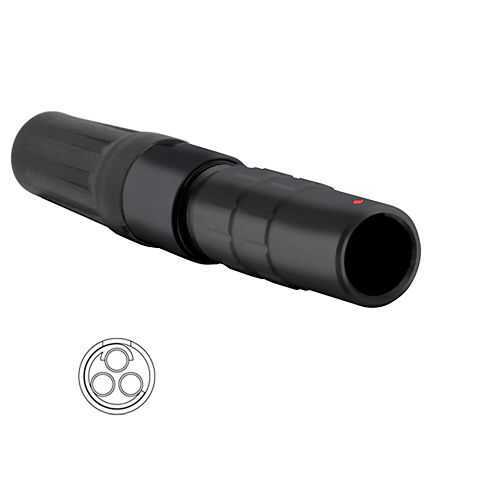

JBXPC1G03FCNDSMR Eaton: In line cable receptacle, IP40, size 1, 3 female contacts, cable clamp protective boot; JBXPC1G03FCNDSMR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC1G03FCNDSMR
Product Length/Depth
42 mm
Product Height
13 mm
Product Width
13 mm
Product Weight
21.64 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland With Optional Boot
