Eaton JBXPC1G03FCNDSR Push-Pull Connector - IP40/IP68
Part Number: JBXPC1G03FCNDSR
Quick Summary
The Eaton Souriau JBX series IP40/IP68 push-pull connector enables rugged, fast mating for harsh industrial equipment. Users struggle with moisture ingress, vibration, and maintenance-heavy interfaces that slow line throughput and increase downtime. The design complies with UL 1977, supports IP40 and IP68 sealing, and features a straight backshell with a sealing gland for reliable sealing in wet or dusty environments. This solution also offers compact dimensions (42 mm length, 13 x 13 mm cross-section) and a light footprint that simplifies panel integration, while the 3-female-contact configuration supports common control and sensing applications. Together with the Souriau line’s documented compatibility, it delivers dependable, scalable connectivity for modern automation systems.
Product Information
Extended Description

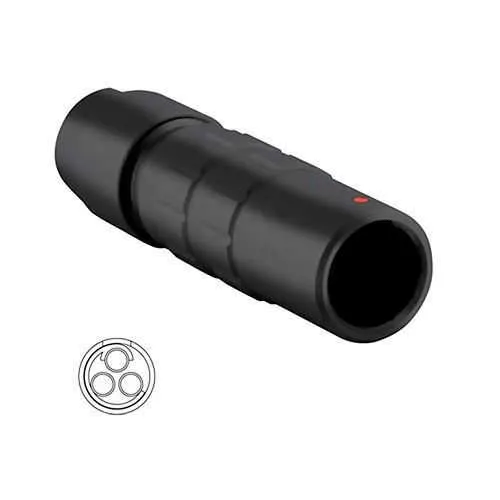

JBXPC1G03FCNDSR Eaton: In line cable receptacle, IP40, size 1, 3 female contacts, cable clamp backshell; JBXPC1G03FCNDSR
Product Name
Eaton Souriau JBX series IP40 / IP68 metallic push-pull connector
Catalog Number
JBXPC1G03FCNDSR
Product Length/Depth
42 mm
Product Height
13 mm
Product Width
13 mm
Product Weight
21.64 g
Compliances
UL 1977
Backshell angle
Straight
Backshell type
Sealing Gland
