Eaton JDL150 Edison fuse - Time-delay 200 kAIC
Part Number: JDL150
Quick Summary
Eaton Edison series JDL fuse provides time-delay current-limiting protection for motor circuits. In demanding control panels, nuisance trips and miscoordination can erode uptime; this fuse addresses that with deliberate timing and coordination. The device is CE marked and RoHS compliant, supporting global compliance, while its 600 V rating and 150 A capacity fit standard industrial feeders. With a 200 kAIC interrupt rating and dual-element design, the JDL150 delivers reliable short-circuit protection in harsh environments, reducing spare parts and warranty exposure. Its straightforward sourcing and compatibility with Eaton catalogs offer a practical, value-driven choice for engineers and procurement teams.
Product Information
Extended Description

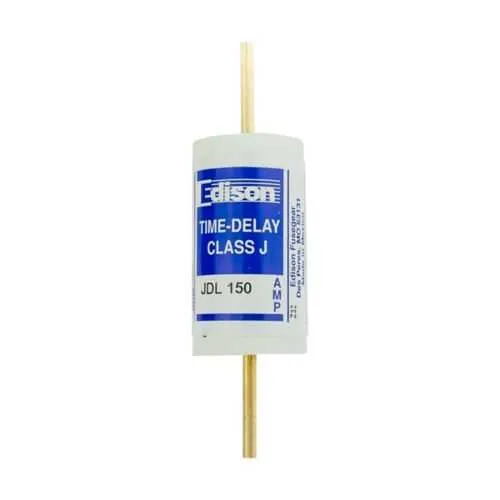

JDL150 Eaton: Eaton Edison series JDL fuse, Time-delay current-limiting fuse, Non-indicating, 150 A, Dual, J, Non-indicating, 200 kAIC, 5, 600 V
Product Name
Eaton Edison series JDL fuse
Catalog Number
JDL150
UPC
782634803522
Product Length/Depth
5.75 in
Product Height
1.63 in
Product Width
1.63 in
Product Weight
1 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
150 A
Interrupt rating
200 kAIC
Voltage rating
600 V
Number of elements
Dual
Packaging type
Standard
Class
Class J
Fuse indicator
Non-indicating
Quantity
5
Special features
Non-indicating
Time-delay current-limiting design minimizes nuisance trips during motor startup, enabling smoother operation and longer motor life. This translates to measurable uptime gains and lower maintenance costs. It is particularly well suited for motor feeders in manufacturing lines where startup surges are common. The Class J fuse with dual elements enhances selective coordination and fault containment, allowing faster isolation of faults without unnecessary outages. The 600 V rating and 150 A capacity ensure compatibility with standard industrial panels, while the 200 kAIC interrupt rating provides robust protection against high-energy faults. Non-indicating status reduces panel label complexity and maintenance checks, and CE plus RoHS compliance support global deployments. Stock and installation advantages, including standard packaging and 5 per pack, simplify procurement and on-site replacement in Eaton Edison ecosystems. This combination helps automation projects stay on schedule and within budget.
