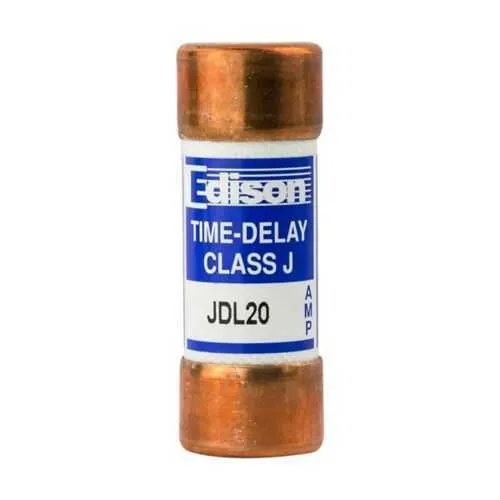

Eaton JDL20 Fuse - Class J, 600 V, RoHS - 200 kAIC
Part Number: JDL20
Quick Summary
Eaton JDL20 fuse provides time-delay current-limiting protection for industrial circuits in panel boards and motor control centers. This design helps prevent unscheduled downtime caused by nuisance trips during transient startup and brief inrush events. The Edison series JDL20 is CE marked and RoHS compliant, with a 200 kAIC interrupt rating and a 600 V rating, ensuring reliable performance in harsh environments. Built for compatibility with standard Class J fuse holders and common enclosure footprints, it delivers straightforward replacement and predictable protection. By integrating this fuse into a preventive maintenance program, you gain inventory simplicity and improved lifecycle management while maintaining strict safety and compliance.
Product Information
Extended Description
JDL20 Eaton: Eaton Edison series JDL fuse, Time-delay current-limiting fuse, Non-indicating, 20 A, Dual, J, Non-indicating, 200 kAIC, 10, 600 V
Product Name
Eaton Edison series JDL fuse
Catalog Number
JDL20
UPC
782634803386
Product Length/Depth
2.25 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
1 lb
Warranty
Not Applicable
Compliances
CE Marked RoHS Compliant
Amperage Rating
20 A
Interrupt rating
200 kAIC
Voltage rating
600 V
Number of elements
Dual
Packaging type
Standard
Class
Class J
Fuse indicator
Non-indicating
Quantity
10
Special features
Non-indicating
Time-delay current-limiting design reduces nuisance trips during transient inrush and startup, improving line uptime and protecting motors, drives, and control circuits in panel boards and MCCs. This translates to fewer production stoppages and lower maintenance costs in mission-critical processes. The 600 V rating paired with a 20 A amperage ensures robust protection for medium-sized loads without compromising drive performance or safety. A 200 kAIC interrupt rating provides a strong fault-clearing capability, minimizing the risk of cascading faults in power distribution equipment and safeguarding personnel. The dual-element, non-indicating Class J package simplifies replacement and reduces mis-sizing risks, with a standard footprint compatible with most common fuse holders and enclosures. RoHS and CE compliance support global deployment and audit readiness, while the standard Edison-series packaging reduces stocking and procurement complexity for OEMs and service teams.
