Eaton JDL30 Fuse - Class J, UL Listed 200 kAIC

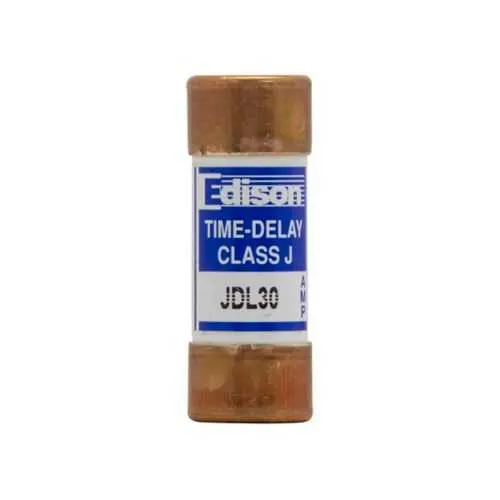

Part Number: JDL30
Quick Summary
The Eaton JDL30 fuse provides time-delay current-limiting protection for power distribution and motor circuits in industrial environments. Nuisance trips and unplanned downtime are common pains in panel assemblies, and improper coordination can mask underlying faults. The JDL30 helps reduce both via a controlled delay that accommodates inrush while still delivering fast fault interruption. It carries UL Listed and CSA Certified marks and CE Marked RoHS compliance, reinforcing safety and regulatory alignment. This device is designed for Class J applications in 600 V systems, offering reliable protection with a compact footprint. For engineers and procurement teams, it delivers predictable protection, easier stocking, and lower maintenance costs across multiple panels and machines.
Product Information
Extended Description
JDL30 Eaton: Eaton Edison series JDL fuse, Time-delay current-limiting fuse, Non-indicating, 30 A, Class J, 200 kAIC, Standard, 10, 600 V
Product Name
Eaton Edison series JDL fuse
Catalog Number
JDL30
UPC
782634803409
Product Length/Depth
2.25 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
1 lb
Warranty
No warranty
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Amperage Rating
30 A
Interrupt rating
200 kAIC
Voltage rating
600 V
Packaging type
Standard
Class
Class J
Fuse indicator
Non-indicating
Quantity
10
Special features
Non-indicating
Feature → Business Impact → Application: Time-delay current-limiting operation allows inrush currents to be tolerated without compromising fault protection, reducing nuisance trips and improving equipment uptime in motor control and power distribution panels. Application: Industrial control panels, motor starters, and feeder circuits in 600 V systems benefit from smoother startup sequences and reduced maintenance downtime. Feature → Business Impact → Application: Class J construction with a 30 A rating provides precise coordination with upstream devices, minimizing unnecessary fuse blows and protecting downstream components in industrial automation. Application: 30 A protection for conveyor drives, pumps, and HVAC control networks. Feature → Business Impact → Application: High interrupt rating of 200 kAIC ensures robust fault containment, improving safety margins and compliance in high-energy motor circuits. Application: Large motors, servo drives, and high-inrush loads in manufacturing lines. Feature → Business Impact → Application: Non-indicating design reduces component clutter and simplifies installation in tight control panels, while maintaining clear visibility of protection status through system-level diagnostics. Application: Compact fuse integration in Edison-style fuse blocks. Feature → Business Impact → Application: Standard packaging and a 10-count quantity streamline stocking, procurement, and replacement planning across multiple assemblies, cutting down maintenance overhead. Application: Multi-panel deployments and OEM applications needing consistent part availability.
