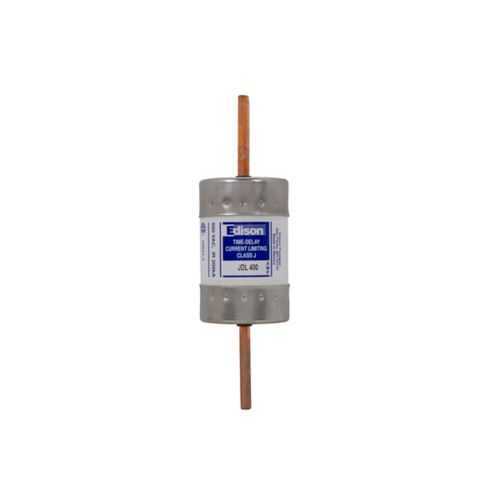

Eaton JDL400 Fuse - Class J, 600 V UL Listed Time-Delay
Part Number: JDL400
Quick Summary
Eaton JDL400 fuse protects high-inrush motor circuits with time-delay current-limiting protection for industrial panels. Engineers often contend with nuisance trips during motor starts and brief inrush peaks that disrupt production. This device carries UL Listed, CSA Certified, CE Marked and RoHS compliant certifications, delivering proven reliability and regulatory peace of mind. By integrating with the Eaton Edison line, you gain predictable protection coordination and long-term cost savings through durable performance and straightforward panel integration in new builds or retrofit projects.
Product Information
Extended Description
JDL400 Eaton: Eaton Edison series JDL fuse, Time-delay current-limiting fuse, Non-indicating, 400 A, Class J, 200 kAIC, Standard, 1, 600 V
Product Name
Eaton Edison series JDL fuse
Catalog Number
JDL400
UPC
782634803591
Product Length/Depth
7.13 in
Product Height
2.13 in
Product Width
2.13 in
Product Weight
1.7 lb
Warranty
No warranty
Compliances
CE Marked RoHS Compliant
Certifications
UL Listed CSA Certified
Amperage Rating
400 A
Interrupt rating
200 kAIC
Voltage rating
600 V
Packaging type
Standard
Class
Class J
Fuse indicator
Non-indicating
Quantity
1
Special features
Non-indicating
Time-delay current-limiting design delivers fast fault interruption while tolerating startup surges. This improves uptime by reducing nuisance trips in motor circuits and extending contactor life. It is particularly suited to motor starters, drives, and panelboard feeders in manufacturing environments.400 A amperage rating and 600 V rating provide robust primary protection in heavy equipment. This supports selectivity and reduces upstream fault exposure, lowering replacement costs. Suitable for large motors and power distribution panels in packaging, metals, and process industries.200 kAIC interrupt rating offers strong fault clearance. This limits fault energy to downstream devices and improves overall system reliability. Use it for critical feeders and main distribution where short-circuit events are a concern.Class J physical form and non-indicating design simplify installation. This reduces space needs and keeps dashboards uncluttered while relying on external indicators or monitoring. Ideal for compact control panels, switchgear, and retrofit projects with space constraints.UL Listed, CSA Certified, CE Marked, and RoHS compliant. This combination ensures regulatory compliance and safe procurement, easing audits. Suitable for regulated facilities, data centers, and heavy industrial environments.
Get a Quick Quote for a Eaton JDL400
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JDL400?
Enquire Now
FAQs
The JDL400 is a Class J fuse designed for Eaton Edison series fuse blocks and standard panelboard arrangements. It fits conventional 7.13 in length housings with a 2.13 in width and 2.13 in height footprint, making retrofit and new builds straightforward in motor control centers and industrial panels.
With time-delay current-limiting characteristics, the JDL400 tolerates motor inrush and brief surge currents without sacrificing protection. You’ll see fewer nuisance trips, better drive uptime, and more predictable protection of conductors and switchgear during startup sequences in conveyors, pumps, and fans.
The JDL400 is UL Listed and CSA Certified, CE Marked, and RoHS compliant. This combination supports compliance audits, product safety expectations, and sustainable procurement in automotive, data center, and general industrial facilities.
Non-indicating means the fuse itself has no built-in visual status indicator. This simplifies panel aesthetics and installation, but requires external monitoring strategies (indicators, alarms, or panel software) to confirm fuse status during maintenance and operation.
The JDL400 supports longer mean time between failures by reducing nuisance trips and providing robust fault interruption (200 kAIC). Combined with UL CSA CE RoHS certifications, it lowers downtime, simplifies regulatory compliance, and reduces lifecycle costs in mid to large industrial installations.
