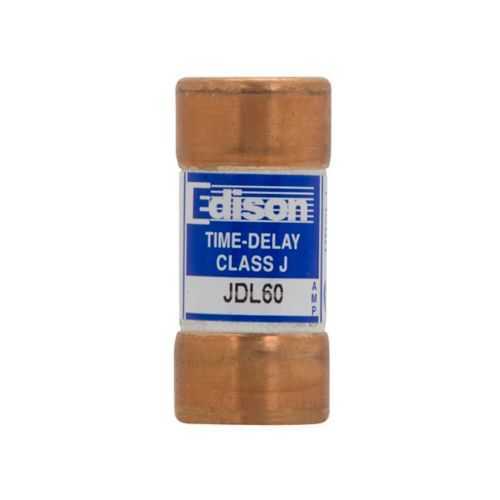

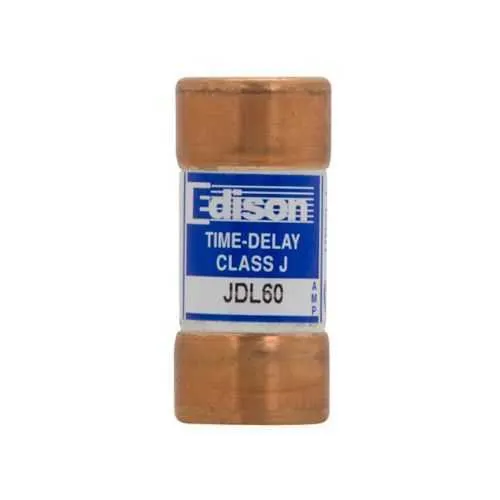

Eaton JDL60 Fuse - Class J, 60 A, 200 kAIC UL Listed
Part Number: JDL60
Quick Summary
The Eaton JDL60 fuse provides time-delay protection for motor circuits and power feeders in industrial controls. Engineers struggle with nuisance trips during startup surges and limited selectivity with older devices, which can drive downtime and maintenance costs. This product carries UL Listed and CSA Certified marks, with RoHS and CE compliance for cross-border installations and environmental responsibility. As a Class J device rated at 60 A and 200 kAIC, it offers reliable coordination with Edison series assemblies and straightforward field replacement. The JDL60 improves uptime, reduces spare-part complexity, and supports safer, standards-aligned protection across diverse equipment and global plants. This helps procurement teams standardize spares, streamline stocking, and reduce total cost of ownership.
Product Information
Extended Description
JDL60 Eaton: Eaton Edison series JDL fuse, Time-delay current-limiting fuse, Non-indicating, 60 A, Class J, 200 kAIC, Standard, 10, 600 V
Product Name
Eaton Edison series JDL fuse
Catalog Number
JDL60
UPC
782634803454
Product Length/Depth
2.38 in
Product Height
1.06 in
Product Width
1.06 in
Product Weight
1 lb
Warranty
No warranty
Compliances
RoHS Compliant CE Marked
Certifications
CSA Certified UL Listed
Amperage Rating
60 A
Interrupt rating
200 kAIC
Voltage rating
600 V
Packaging type
Standard
Class
Class J
Fuse indicator
Non-indicating
Quantity
10
Special features
Non-indicating
Time-delay current-limiting protection is engineered to tolerate brief inrush while preserving fast fault interruption. The business impact is fewer nuisance trips, reduced downtime, and lower maintenance costs in motors, conveyors, and pump lines. This feature is particularly valuable in startups and multi-machine panels where staggered energization improves process reliability and minimizes electrical noise, enabling smoother operation in batch or continuous processes. UL Listed and CSA Certified marks provide regulatory confidence, while RoHS and CE compliance support cross-border deployments and environmental responsibility. By aligning with recognized standards, the JDL60 simplifies audits and supplier qualification, helping procurement avoid alternative components and harmonize global spares with Edison series assemblies. 60 A amperage rating, 600 V rating, and 200 kAIC interrupt capability guarantee robust protection for motors, drives, and distribution panels. The device coordinates with downstream fuses and breakers to optimize selectivity, reducing the likelihood of wide-area outages and enabling safer maintenance windows. In practice, this performance translates into measurable uptime gains and safer shutdown sequences during fault events. Class J construction and Edison series compatibility streamline stocking, installation, and field replacement. Standard packaging and compact dimensionsā2.38 in long, 1.06 in high and wideāfit common control panel footprints and limit space constraints in retrofits. The non-indicating fuse interface reduces panel clutter and improves readability during inspections, while the 10-piece packaging helps maintenance teams plan replacements. From a reliability perspective, Eaton's Edison fuses benefit from proven material quality and documented performance, supporting long service life in harsh industrial environments. For projects requiring quick procurement, the JDL60's consistent cataloging means faster sourcing, fewer substitutions, and better total cost of ownership through predictable performance and vendor support.
Get a Quick Quote for a Eaton JDL60
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JDL60?
Enquire Now
FAQs
The JDL60 is designed for motor protection and power distribution in industrial controls. It suits motor starters, drives, and panel assemblies in manufacturing and process facilities where brief inrush currents occur. With 60 A rating and 200 kAIC interrupt capability, it coordinates with upstream devices and Edison series components for reliable protection and easy stocking.
The JDL60 uses a time-delay element to tolerate brief inrush while ensuring fast interrupt for faults. This reduces nuisance trips that typically plague older fuses, improving uptime for equipment like conveyors and pumps. Engineers gain more stable operation, clearer protection coordination, and fewer unplanned maintenance events.
The JDL60 carries UL Listed and CSA Certified marks for regulatory compliance, with RoHS and CE compliance for environmental and global installations. These certifications simplify audits, facilitate cross-border projects, and support procurement within multinational plants while meeting essential safety and sustainability requirements.
The JDL60 is designed for Edison series assemblies and standard control-panel footprints. It comes in standard packaging with defined dimensions (2.38 in L, 1.06 in W and H) and a 1 lb weight, enabling straightforward field replacement and quick stocking. Its non-indicating indicator keeps panel interiors uncluttered during routine inspections.
Key ratings include 60 A amperage, 600 V voltage rating, and a 200 kAIC interrupt rating, with Class J construction and non-indicating fuse indicator. These specs support reliable protection, safe disconnection at fault, and alignment with Edison series standards for consistent protection across industrial equipment.
