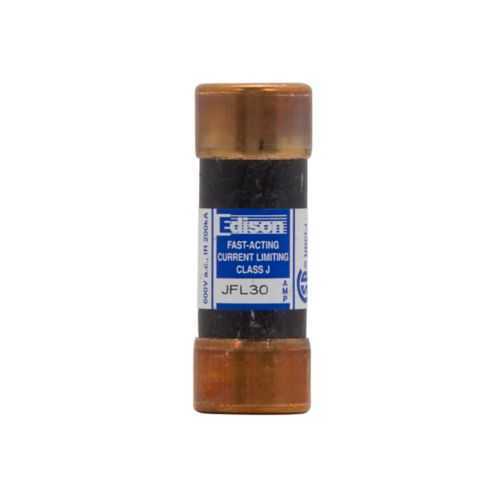

Eaton JFL30 Edison Fuse - Class J, 200 kAIC
Part Number: JFL30
Quick Summary
Eaton Edison JFL fuse is a reliable overcurrent protection device for industrial control panels and motor circuits. The challenge many teams face is sourcing components that fit standard enclosures, ship in common packaging, and meet uptime goals without complicating procurement. This fuse line carries UL Listed, CSA Certified, and CE Marked compliance, paired with a 600 V rating and a 200 kAIC interrupt capability to support robust protection in diverse environments. By selecting a non-indicating, Class J design like JFL30, engineers benefit from predictable trip behavior, straightforward installation, and reduced downtime, while procurement remains streamlined through standard packaging and compatibility with common fuseholders.
Product Information
Extended Description
JFL30 Eaton: Eaton Edison series JFL fuse, Non-indicating, 30 A, Class J, 200 kAIC, Standard, 10, 600 V
Product Name
Eaton Edison series JFL fuse
Catalog Number
JFL30
UPC
782634808886
Product Length/Depth
2.25 in
Product Height
0.81 in
Product Width
0.81 in
Product Weight
0.11 lb
Warranty
No warranty
Compliances
CE Marked
Certifications
UL Listed CSA Certified
Amperage Rating
30 A
Interrupt rating
200 kAIC
Voltage rating
600 V
Packaging type
Standard
Class
Class J
Fuse indicator
Non-indicating
Quantity
10
Special features
Non-indicating
Feature The Edison series JFL30 fuse is a compact, standard-form Class J device that fits easily into tight control panels. Benefit This compact footprint enables higher panel density and easier cable routing, reducing enclosure size and overall manufacturing costs. Application Used in space-constrained motor control centers and automation panels where reliable protection is required without increasing cabinet footprint. Feature The fuse is rated for 30 A at 600 V with a 200 kAIC interrupt rating. Benefit Provides high-speed fault isolation for moderate loads, minimizing damage and downtime in conveyors, pumps, and drives. Application Suitable for medium-power machinery and process equipment requiring fast, predictable protection. Feature Compliance and certifications include UL Listed, CSA Certified, and CE Marked. Benefit Simplifies procurement and regulatory compliance across global sites, reducing vendor audits and design risk. Application Ideal for multinational facilities with strict safety standards. Feature Packaging type is Standard with a Quantity of 10 per package. Benefit Streamlines stocking and replenishment, enabling faster maintenance workflows and safer inventory management. Application Works well for field service kits and new installation spares. Feature Non-indicating fuse design reduces visual indicators that can fail or mislead during quick checks. Benefit Improves reliability by avoiding false indications and simplifies replacement in routine maintenance. Application Suits high-volume service environments where quick, unambiguous replacement is preferred.
Get a Quick Quote for a Eaton JFL30
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JFL30?
Enquire Now
FAQs
The JFL30 is designed for standard Edison Bussmann-type fuse holders and typical Class J fuse holders used in industrial control panels. Its non-indicating design minimizes false readings, while the standard packaging (10 pieces) simplifies stocking. This makes retrofits and new installations quicker and less error-prone for field technicians and panel builders.
The JFL30 provides a 30 A amperage rating, a 600 V voltage rating, and a 200 kAIC interrupt rating. These specs support reliable short-circuit protection for moderate-size loads in automation panels and motor circuits, while maintaining compatibility with common industrial electrical standards and safety requirements.
Industries leveraging automation and motor control—such as packaging, material handling, and process automation—gain from the JFL30’s reliable protection, compact footprint, and global certifications. Its Class J construction and high interrupt rating make it suitable for panel boards, drive systems, and distribution enclosures in grounded, 3-phase networks.
The JFL30 is UL Listed, CSA Certified, and CE Marked, ensuring compliance with international electrical safety and performance requirements. This reduces certification hurdles for multinational deployments and simplifies supplier qualification processes for regulated environments.
The Edison JFL30 carries no warranty as specified in the data. For maintenance, replace after fault clearance with a like-for-like JFL30 to maintain rated protection. The 10-pack packaging supports routine stocking, enabling faster replacements and minimizing downtime during scheduled maintenance or unexpected outages.
