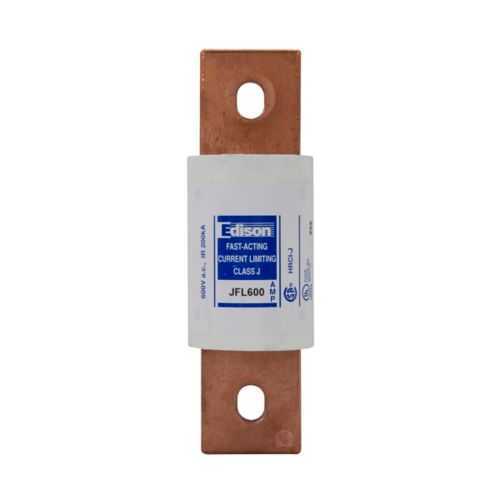

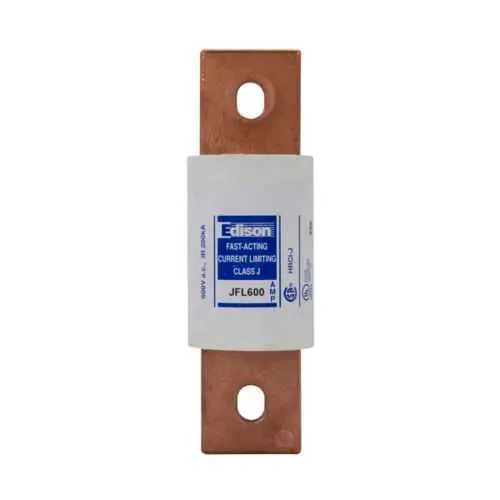

Eaton JFL600 Fuse - Class J, UL Listed 200 kAIC
Part Number: JFL600
Quick Summary
The Eaton Edison JFL fuse delivers reliable overcurrent protection for industrial power distribution and control panels. End users often confront nuisance trips or protection gaps when devices are mis-rated or undersized for high-inrush loads. This part carries UL Listed, CSA Certified, and CE Marked credentials, supporting regulatory acceptance and cross-border sourcing. With a Class J, 600 V rating and a 200 kAIC interrupt rating, it enables reliable protection in demanding industrial environments while enabling streamlined procurement and maintenance. The available datasheet, catalog references, and Eaton specifications help engineers validate fitment early in project design.
Product Information
Extended Description
JFL600 Eaton: Eaton Edison series JFL fuse, Non-indicating, 600 A, Class J, 200 kAIC, Standard, 1, 600 V
Product Name
Eaton Edison series JFL fuse
Catalog Number
JFL600
UPC
782634809081
Product Length/Depth
8 in
Product Height
2.5 in
Product Width
2.5 in
Product Weight
3.22 lb
Warranty
No warranty
Compliances
CE Marked
Certifications
UL Listed CSA Certified
Amperage Rating
600 A
Interrupt rating
200 kAIC
Voltage rating
600 V
Packaging type
Standard
Class
Class J
Fuse indicator
Non-indicating
Quantity
1
Special features
Non-indicating
Feature: Non-indicating design reduces maintenance and simplifies panel assembly. Business Impact: Cuts downtime during routine inspections and minimizes indicator-related fault misreads, enabling faster restoration after faults. Application: Ideal for enclosed power distribution and motor control panels where status indicators are managed by control logic. Feature: 600 A amperage rating with 200 kAIC interrupt rating. Business Impact: Provides robust protection against high fault currents, reducing equipment damage and extending component life. Application: Main feeders and critical loads in industrial facilities requiring high fault withstand capability and selectivity. Feature: 600 V voltage rating aligned with standard industrial power systems. Business Impact: Ensures safe operation within common European and North American distribution architectures, simplifying specification flow. Application: Industrial switchgear, motor starters, and panelboard protection in class J fuse installations. Feature: Compliance and certifications (UL Listed, CSA Certified, CE Marked). Business Impact: Enables global procurement, faster approvals, and reduces supplier risk through recognized safety validation. Application: Global manufacturing environments and multi-site projects where regulatory conformity is mandatory. Feature: Compact physical footprint (8 in length, 2.5 in width, 2.5 in height) and standard packaging. Business Impact: Facilitates retrofits and panel upgrades without extensive enclosure modifications. Application: Retrofit projects in legacy panels and new installations with limited space. Additional context: Eaton’s Edison catalog references and the official specification sheet support design verification, component compatibility, and lifecycle planning for industrial protection and circuit control needs.
Get a Quick Quote for a Eaton JFL600
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JFL600?
Enquire Now
FAQs
The JFL600 fuse measures 8 inches in length with a square 2.5 by 2.5 inch footprint and weighs about 3.22 pounds. It fits standard fuse holders and panel rails designed for Class J protection. Ensure at least the full 8 inch length is unobstructed inside the enclosure and provide adequate clearance for removal and replacement tooling.
The JFL600 fuse is UL Listed and CSA Certified with CE Marked compliance. These certifications validate safety, performance, and compatibility for North American and European markets, supporting procurement approvals, regulatory alignment, and multi-site deployment without requiring separate product validation for each region.
Amperage rating is 600 A, interrupt rating is 200 kAIC, and voltage rating is 600 V. Together they define the fuse’s ability to interrupt fault currents without damage, handle inrush conditions, and protect downstream equipment. This combination supports reliable protection for heavy loads in industrial power distribution and motor control panels.
The JFL600 is a non-indicating fuse, meaning it does not provide a built-in visual fuse status indicator. Status monitoring should rely on the broader protection scheme, such as control system signals, panel alarms, or upstream diagnostic instrumentation, to detect fuse operation and fault conditions without relying on indicator visibility.
Rely on Eaton’s Edison full-line catalogs, the Bussmann series Fuseology video, and the Eaton specification sheet for JFL600 to verify compatibility, installation guidelines, and lifecycle considerations. Maintain an up-to-date spare parts inventory containing the JFL600 catalog number, and reference the datasheet for replacement intervals and handling procedures to minimize downtime.
