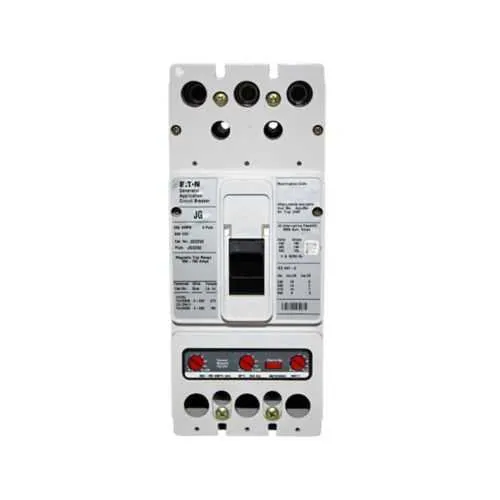

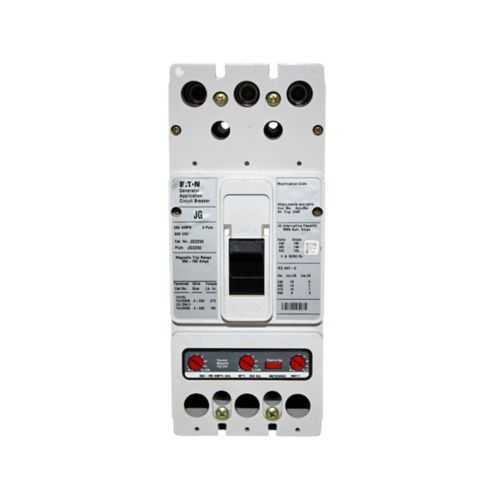

Eaton JG3100CT Engine MCCB - 14 kAIC UL Listed
Part Number: JG3100CT
Quick Summary
The Eaton JG3100CT engine MCCB provides reliable overcurrent protection for generator sets and engine-driven electrical systems. Designers often struggle with reverse-feed configurations and mixed-voltage layouts that complicate protection coordination. This unit is UL Listed, CSA Certified, and IEC rated, ensuring broad compliance for both North American and international generator applications. By pairing 60 Hz operation with 600 Vac rails and a 100 A capacity, it streamlines installation and reduces lifecycle costs, delivering robust protection without compromising accessibility or serviceability.
Product Information
Extended Description
JG3100CT Eaton: Eaton Series C complete EG molded case circuit breaker, J-frame, Complete breaker, Thermal-magnetic trip, Three-pole, 100A, 600 Vac, 14 kAIC at 480 Vac, Line and load, Engine generator, Reverse feed, 60 Hz
Product Name
Eaton complete engine generator molded case circuit breaker
Catalog Number
JG3100CT
UPC
786679108833
Product Length/Depth
4.06 in
Product Height
10 in
Product Width
4.13 in
Product Weight
9.21 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed IEC Rated CSA Certified IEC 947-2 UL 489 CSA Std. C22.2 No. 5
Amperage Rating
100 A
Voltage rating
600 Vac
Trip Type
T268
Circuit breaker frame type
Complete breaker
Terminals
Line and load
Frame
J
Frequency rating
60 Hz
Class
Engine generator
Accessories
Center tap studs for dual voltage applications
Interrupt rating
14 kAIC at 480 Vac
Number of poles
Three-pole
Functions
Reverse
Engine generator circuit breakers catalog
Circuit Breakers Explained
Eaton Specification Sheet - JG3100CT
