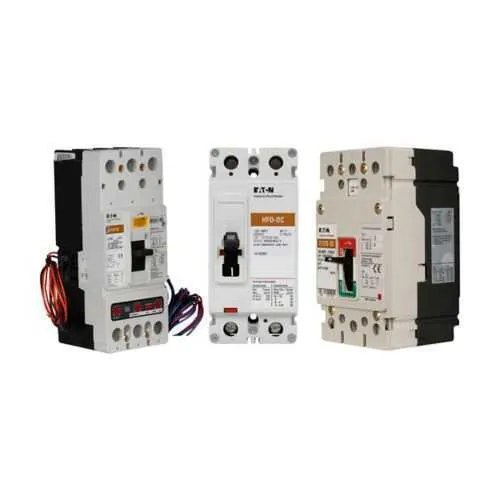

Eaton JGEDC3200FAG PV Guard Solar MCCB - UL 489

Feature → Business Impact → Application: 200 A amperage rating delivers solid protection for mid-size PV arrays, reducing fault propagation and equipment wear, which translates to lower maintenance costs and less downtime in commercial solar projects. Application: Suitable for PV string protection and panel-level feeders where reliability and clear fault signaling are critical. Feature → Business Impact → Application: 600 Vac / 250 Vdc voltage ratings enable simultaneous AC and DC protection within a single MCCB, simplifying electrical design and reducing parts counts on site. Application: PV inverters, combiner boxes, and DC string protection where fast discrimination and safe shutdown are required. Feature → Business Impact → Application: 35 kAIC interrupt rating at 600 Vac provides strong fault handling for distribution panels, improving safety margins and safeguarding system infrastructure. Application: Medium- to large-scale industrial PV installations and electrical rooms with elevated fault currents. Feature → Business Impact → Application: Trip Type T185 with fixed thermal and adjustable magnetic elements offers coordinated protection, minimizing nuisance trips while meeting code-based selectivity. Application: Systems requiring precise coordination with inverter protections and PV conductors. Feature → Business Impact → Application: JG frame, line and load terminals, and metric mounting hardware simplify installation and retrofit, aiding compatibility with standard panels and enclosures. Application: New builds or upgrades in commercial rooftops and utility-scale PV setups seeking straightforward integration. Feature → Business Impact → Application: UL 489 certified status ensures established compliance and traceable performance, supporting risk management and procurement confidence. Application: Any industrial or commercial panel housing PVGard MCCBs where regulatory alignment is essential.
