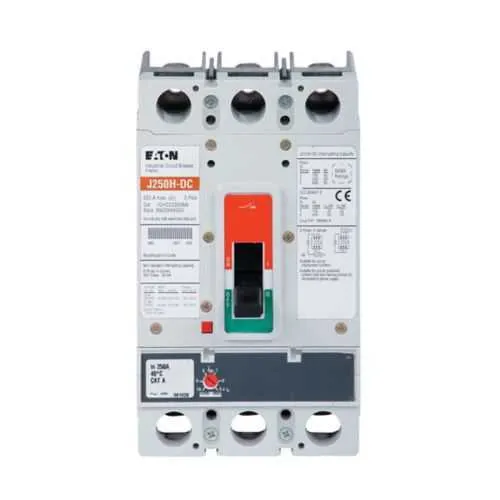

Eaton JGHDC3200FAW PV Guard MCCB - UL 489
Part Number: JGHDC3200FAW
Quick Summary
JGHDC3200FAW PV Guard is a complete molded case circuit breaker for PV solar systems. Engineers often face unreliable DC protection and challenging installation in tight PV arrays. UL 489 certification, 600 Vac and 250 Vdc ratings, and a fixed thermal with adjustable magnetic trip (T185) deliver reliable protection and precise coordination. This solution reduces wiring complexity with terminals omitted, speeds field commissioning, and helps meet NEC/UL requirements while maintaining a compact footprint. For solar developers and industrial facilities, the combination of rugged DC protection and proven Eaton reliability translates into lower downtime and lower total cost of ownership.
Product Information
Extended Description
JGHDC3200FAW Eaton: Eaton Series G DC/PvGard complete molded case circuit breaker, JG-frame, JGHDC, Complete breaker, Fixed thermal, adjustable magnetic trip type, Three-pole, 200A, 600 Vac, 250 Vdc, Without terminals, Vdc
Product Name
Eaton PV Guard / Solar complete molded case circuit breaker
Catalog Number
JGHDC3200FAW
UPC
786685494531
Product Length/Depth
3.57 in
Product Height
4.13 in
Product Width
4.13 in
Product Weight
6.5 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL 489
Amperage Rating
200 A
Voltage rating
600 Vac, 250 Vdc
Trip Type
T185
Circuit breaker type
JG
Circuit breaker frame type
Complete breaker
Terminals
Without terminals
Frame
JG
Class
Vdc
Number of poles
Three-pole
PVGard solar circuit breakers product aid
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Value of Circuit Breakers for PV Systems and Eaton PVGard Solar Circuit Breakers
Eaton Specification Sheet - JGHDC3200FAW
Eaton Specification Sheet - JGHDC3200FAW
Feature: Three-pole, complete breaker with JG frame design. Business Impact: Enables compact, robust DC protection in PV string cabinets, reducing space needs and improving coordination. Application: Ideal for mid- to large-scale PV installations where reliable DC protection is required without compromising enclosure size. Feature: 200 A Amperage Rating. Business Impact: Supports high-current PV strings and fault-tolerant protection without nuisance trips, improving system uptime. Application: Solar farms and commercial rooftop arrays with elevated current profiles. Feature: Voltage ratings of 600 Vac and 250 Vdc. Business Impact: Broadens applicability across AC mains and DC PV circuits, simplifying fleet standardization. Application: Mixed electrical environments common in hybrid solar facilities. Feature: Trip Type T185 with fixed thermal and adjustable magnetic. Business Impact: Delivers precise short-circuit protection and selectivity, enabling safer maintenance windows. Application: Critical PV DC protection where fast, predictable tripping matters. Feature: Without terminals. Business Impact: Reduces wiring complexity and potential terminal-related faults, speeding installation. Application: Factory-trained technicians installing in compact MCCB panels. Feature: UL 489 certification. Business Impact: Ensures compliance with recognized safety standards, facilitating procurement and site approvals. Application: Projects requiring certified MCCBs for utility-grade PV protection. Industry insight: The JG frame and three-pole configuration support streamlined mounting, easier labeling, and consistent protection schemes across multiple inverters and combiners, aligning with common PV system architectures while maintaining industrial-grade reliability.
