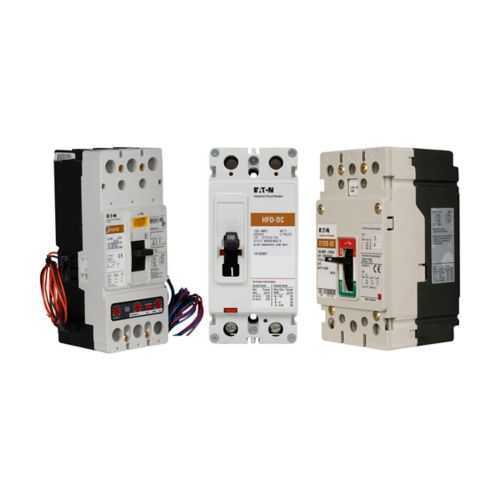

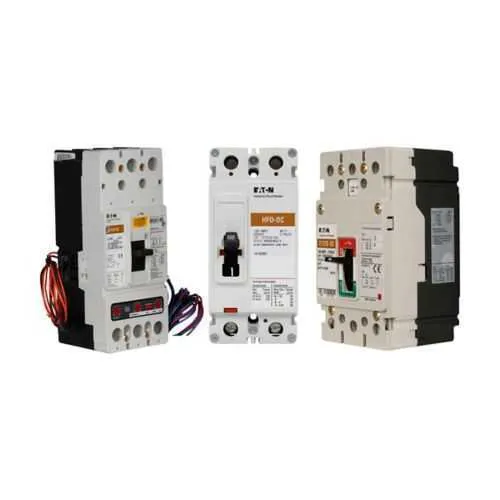

Eaton JGPVS3225W PV Guard Solar MCCB - UL Listed

Feature → Business Impact → Application: Three-pole JG frame design provides comprehensive protection for three-phase PV feeders, enhancing system reliability and simplifying panel layout in solar installations. This supports safer, code-compliant wiring while minimizing diagnostic downtime during fault events. Application: Suitable for commercial and utility-scale PV arrays where dependable overcurrent protection is essential. Feature → Business Impact → Application: 225 A amperage rating delivers targeted protection for mid-to-large PV circuits, reducing the likelihood of nuisance trips and enabling tighter protection coordination with upstream devices. Application: Ideal for PV inverters and string combiner boxes needing precise current-limiting without compromising system availability. Feature → Business Impact → Application: 600 Vdc voltage rating ensures compatibility with standard PV module strings and DC conductors, improving installation efficiency and compliance with PV safety standards. Application: Fits typical PV racking and junction box configurations with minimal terminal changes. Feature → Business Impact → Application: 1.2 kAIC interrupt rating offers enhanced fault interruption capacity, lowering the risk of arc-flash exposure and protecting photovoltaic equipment from severe faults. Application: Critical for utility-grade solar projects and large-scale commercial rooftops. Feature → Business Impact → Application: Without terminals, pre-wired assemblies reduce field labor and timing for commissioning, speeding up project schedules. Application: Accelerates deployment in tight installation spaces and reduces terminal-related procurement complexity. Feature → Business Impact → Application: 80% rated performance provides conservative operating margins aligned with PV safety margins, ensuring sustained protection under fluctuating solar generation. Application: Supports dependable long-term protection in variable irradiance and temperature environments. Feature → Business Impact → Application: UL Listed certification offers industry-recognized safety compliance, streamlining procurement and insurer confidence. Application: Helps meet regulatory requirements for electrical protection in PV systems. Feature → Business Impact → Application: Photovoltaic class designation communicates suitability for PV protection roles, guiding system integrators in selecting appropriate MCCBs. Application: Improves spec accuracy for solar project documentation and commissioning sheets.
