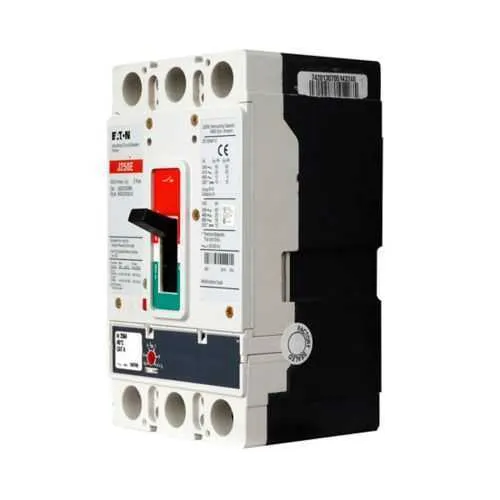

Eaton JGS2100FAG MCCB - 85 kAIC at 240 Vac UL Listed
Part Number: JGS2100FAG
Quick Summary
Eaton JGS2100FAG molded case circuit breaker delivers reliable overcurrent protection for industrial control panels. In demanding environments, nuisance trips and inconsistent coordination can lead to unplanned downtime and costly repairs. The unit carries UL Listed, CSA Certified, and IEC Rated certifications, with 85 kAIC at 240 Vac, ensuring compliance across international projects. As a two-pole JG frame device rated 600 Vac and 250 Vdc, it supports scalable protection schemes while simplifying installation and maintenance. Designed for OEMs and panel builders, it aligns with best practices for reliability, standardization, and lifecycle cost reduction. Its compact dimensions—3.44 in depth, 7 in height, and 4.13 in width—enable dense control-panel layouts and straightforward field retrofit.
Product Information
Extended Description
JGS2100FAG Eaton: Eaton Series G molded case circuit breaker, JG-frame, JG, Fixed thermal, adjustable magnetic trip, Two-pole, 100A, 600 Vac, 250 Vdc, 85 kAIC at 240 Vac, 35 kAIC at 480 Vac, 18 kAIC at 600 Vac, Line and load, 50/60 Hz
Product Name
Eaton Series G complete molded case circuit breaker
Catalog Number
JGS2100FAG
UPC
786685017983
Product Length/Depth
3.44 in
Product Height
7 in
Product Width
4.13 in
Product Weight
6 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
CE Marked
Certifications
CSA Certified UL Listed IEC Rated
Type
Complete breaker
Amperage Rating
100 A
Voltage rating
600 Vac, 250 Vdc
Trip Type
T185
Circuit breaker type
JG
Circuit breaker frame type
Complete breaker
Series
Series G
Terminals
Line and load
Frame
JG
Frequency rating
50/60 Hz
Interrupt rating
35 kAIC at 480 Vac 18 kAIC at 600 Vac 85 kAIC at 240 Vac
Number of poles
Two-pole
Application of Tap Rules to Molded Case Breaker Terminals
Application of Tap Rules to Molded Case Breaker Terminals
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
Breaker service centers
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Eaton Specification Sheet - JGS2100FAG
Eaton Specification Sheet - JGS2100FAG
Eaton Specification Sheet - JGS2100FAG
Selling Policy 25-000 - Distribution and Control Products and Services
Feature → Business Impact → Application: The JG frame uses fixed thermal and adjustable magnetic trip (T185), delivering precise protection curves that minimize nuisance trips while maintaining strong short-circuit protection for critical automation equipment. This translates to reduced unscheduled downtime and safer field operations in assembly lines and packaging facilities. Feature → Business Impact → Application: With 100 A amperage rating and a 600 Vac / 250 Vdc voltage capability, the MCCB supports diverse power architectures from distribution panels to machine control circuits across global sites, simplifying procurement and stocking. Feature → Business Impact → Application: Interrupt ratings of 85 kAIC at 240 Vac, 35 kAIC at 480 Vac, and 18 kAIC at 600 Vac enable selective coordination in multi-outlet panels, improving reliability and maintenance planning in complex systems. Feature → Business Impact → Application: Line and load terminals on a compact 3.44 in depth, 4.13 in width footprint support dense panel layouts and easier field retrofits, reducing installation time and cost. Feature → Business Impact → Application: Series G compliance is reinforced by CE marking, UL Listed, CSA Certified, and IEC Rated, simplifying regulatory approvals for global projects and OEM collaborations. Feature → Business Impact → Application: A one-year warranty (or 18 months from shipment) provides business protection against early-life defects, helping installer teams manage lifecycle costs and warranty administration efficiently.
Get a Quick Quote for a Eaton JGS2100FAG
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JGS2100FAG?
Enquire Now
FAQs
The JGS2100FAG is a two-pole MCCB built on the JG frame within the Series G family, featuring line and load terminals for straightforward wiring. Its compact 3.44 in depth, 7 in height, and 4.13 in width fit dense panel environments, while the 6 lb weight supports easy handling during field installation and retrofit projects.
This MCCB uses fixed thermal protection and an adjustable magnetic trip (T185) to tailor short-circuit response. Adjusting the magnetic trip is recommended when coordinating with upstream protective devices or when protecting equipment with varying inrush or fault current profiles to avoid nuisance trips while maintaining safety margins.
Yes. With 100 A rating, 600 Vac / 250 Vdc voltage capability, and interrupt ratings up to 85 kAIC at 240 Vac, the device supports selective coordination and robust fault protection in automation panels. UL Listed, CSA Certified, and IEC Rated certifications further reinforce reliability and regulatory compliance across manufacturing sites.
JGS2100FAG carries UL Listed, CSA Certified, IEC Rated, and CE Marked certifications. When selecting enclosures, ensure the panel enclosure material and ingress protection align with 600 Vac operation and the specific environment, and verify that the enclosure supports the Series G MCCB’s torque and wiring requirements for safe, compliant installations.
Maintenance is typically limited to periodic inspection of connections and trip settings per the service policy; Eaton provides a one-year warranty (or 18 months from shipment). The device’s high interrupt ratings and durable field-reliable design reduce downtime, improve predictability of protection, and lower lifecycle costs by minimizing unexpected equipment failures in critical lines.
