Eaton JGS2250FAG Complete MCCB - UL Listed CE
Part Number: JGS2250FAG
Quick Summary
Molded case circuit breaker Eaton JGS2250FAG protects industrial power distribution panels from faults. This model helps you optimize safety and reliability across machine controls and line side protections. Engineers struggle with selective coordination, nuisance trips, and escalating maintenance costs when upgrading legacy MCCBs. UL Listed, IEC rated, CSA certified, and CE marked, this unit meets global standards for electrical protection. Designed for 600 Vac systems with metric mounting hardware, it enables faster, safer installations and consistent panel designs. Businesses gain improved uptime, easier spare-part sourcing, and longer service intervals, while integrators benefit from documented compatibility with Series G accessories and predictable trip performance in demanding environments.
Product Information
Extended Description
JGS2250FAG Eaton: Series G MCCB: JG Frame, 250A, Two-pole, 600V, 85 kAIC at 240V, 40 kAIC at 415V, 35 kAIC at 480V, 18 kAIC at 600V, Line/load standard w/ metric mounting hardware, Fixed thermal, adj. magnetic
Product Name

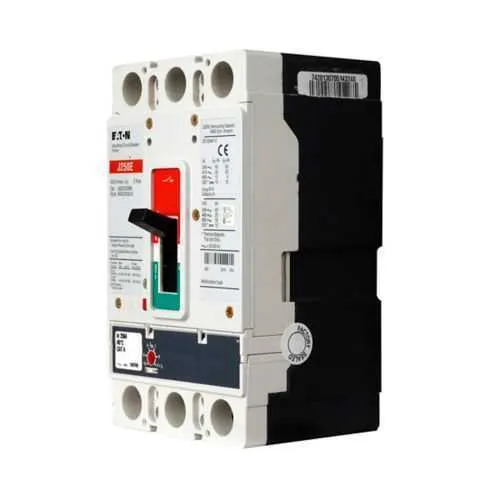

Eaton Series G complete molded case circuit breaker
Catalog Number
JGS2250FAG
UPC
786685018041
Product Length/Depth
3.57 in
Product Height
4.13 in
Product Width
4.13 in
Product Weight
6 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
CE Marked
Certifications
UL Listed IEC Rated CSA Certified
Type
Complete breaker
Amperage Rating
250 A
Voltage rating
600 Vac
Trip Type
T185
Circuit breaker type
JG
Circuit breaker frame type
Complete breaker
Terminals
Line and load
Frame
JG
Mounting hardware
Metric
Interrupt rating
40 kAIC at 415 Vac 35 kAIC at 480 Vac 85 kAIC at 240 Vac 18 kAIC at 600 Vac
Number of poles
Two-pole
