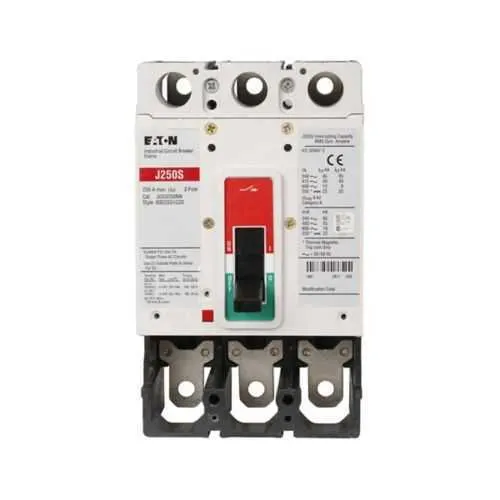

Eaton JGS3070FAGC Molded Case Breaker - UL Listed
Part Number: JGS3070FAGC
Quick Summary
The Eaton JGS3070FAGC molded case circuit breaker provides reliable overcurrent protection for industrial control panels. In tight spaces and high-demand systems, nuisance trips and miscoordination can derail startups and drive maintenance costs. UL Listed, IEC Rated, and CSA Certified marks with CE approval support global deployments and regulatory compliance. With a 70 A rating, 600 VAC and 250 VDC capabilities, a three-pole JG frame, and operation at 50/60 Hz, this device delivers scalable protection for feeders and motors while helping reduce downtime and spare parts needs.
Product Information
Extended Description
JGS3070FAGC Eaton: Eaton Series G molded case circuit breaker, JG-frame, JG, Fixed thermal, adjustable magnetic trip, Three-pole, 70A, 600 Vac, 250 Vdc, 85 kAIC at 240 Vac, 35 kAIC at 480 Vac, 18 kAIC at 600 Vac, Copper, Line and load, 50/60 Hz, 100% rated
Product Name
Eaton Series G complete molded case circuit breaker
Catalog Number
JGS3070FAGC
UPC
786685290881
Product Length/Depth
3.44 in
Product Height
7 in
Product Width
4.13 in
Product Weight
6 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
CE Marked
Certifications
UL Listed IEC Rated CSA Certified
Type
Complete breaker
Amperage Rating
70A
Voltage rating
600 Vac, 250 Vdc
Trip Type
T185
Circuit breaker type
JG
Circuit breaker frame type
Complete breaker
Rating
100% rated
Series
Series G
Terminals
Line and load
Frame
JG
Frequency rating
50/60 Hz
Terminal material
Copper
Interrupt rating
35 kAIC at 480 Vac 18 kAIC at 600 Vac 85 kAIC at 240 Vac
Number of poles
Three-pole
Application of Tap Rules to Molded Case Breaker Terminals
Application of Tap Rules to Molded Case Breaker Terminals
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
Breaker service centers
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Eaton Specification Sheet - JGS3070FAGC
Eaton Specification Sheet - JGS3070FAGC
Eaton Specification Sheet - JGS3070FAGC
Selling Policy 25-000 - Distribution and Control Products and Services
The JG frame three-pole molded case breaker provides compact protection for three-phase feeders, enabling denser panel layouts and simpler wiring in machines and facilities. In practice, this translates to smaller control panels, faster installation, and reduced labor costs during commissioning. Fixed thermal with adjustable magnetic trip (T185) delivers selectivity across circuits; engineers can tune the magnetic trip to match load profiles, minimizing collateral trips while preserving fast fault clearance in critical equipment such as conveyors and pumps. Operating at 70A with 600 VAC and 250 VDC ratings covers typical industrial loads from motors to feeders, and the 100% rated performance at 50/60 Hz ensures reliable protection under normal operating conditions. Interrupt ratings of 85 kAIC at 240 VAC, 35 kAIC at 480 VAC, and 18 kAIC at 600 VAC provide strong disconnect capabilities, enhancing safety and helping meet short-circuit requirements. Copper line and load terminals offer robust connections and low contact resistance, while compatibility with Series G accessories supports plug-and-play upgrades and streamlined maintenance. The product carries UL Listed, IEC Rated, CSA Certified and CE Marked certifications, backed by Eaton’s warranty policy for installed units, reducing risk across global projects.
