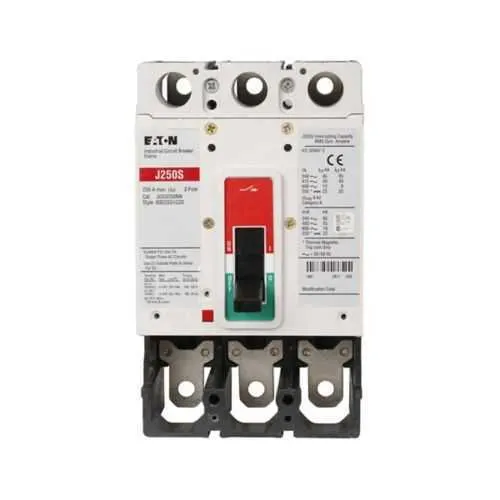

Eaton JGS3175FAGC Molded Case Breaker - UL Listed, 600 Vac
Part Number: JGS3175FAGC
Quick Summary
Eaton JGS3175FAGC molded case breaker provides precise overload and short-circuit protection for three‑phase power systems in industrial control panels. Engineers often face nuisance trips and maintenance headaches when selecting protective devices that don’t coordinate with upstream equipment. UL Listed, CSA Certified, and CE Marked certifications provide robust cross‑border safety validation for panel builders and integrators. With a 175 A rating and 600 Vac capability, the Series G MCCB aligns with standard Eaton accessories and installation practices. Its fixed thermal, adjustable magnetic trip (T185) and three‑pole configuration support selective coordination while helping reduce panel depth and downtime, delivering tangible life-cycle value for machines and lines.
Product Information
Extended Description
JGS3175FAGC Eaton: Eaton Series G molded case circuit breaker, JG-frame, JG, Fixed thermal, adj. magnetic trip, Three-pole, 175A, 600 Vac, 85 kAIC at 240 Vac, 40 kAIC at 415 Vac, 35 kAIC at 480 Vac, 18 kAIC at 600 Vac, Copper, Line/load, Metric, 100% rated
Product Name
Eaton Series G complete molded case circuit breaker
Catalog Number
JGS3175FAGC
UPC
786685290935
Product Length/Depth
3.57 in
Product Height
4.13 in
Product Width
4.13 in
Product Weight
6 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
CE Marked
Certifications
UL Listed IEC Rated CSA Certified
Type
Complete breaker
Amperage Rating
175 A
Voltage rating
600 Vac
Trip Type
T185
Circuit breaker type
JG
Circuit breaker frame type
Complete breaker
Rating
100% rated
Terminals
Line and load
Frame
JG
Mounting hardware
Metric
Terminal material
Copper
Interrupt rating
35 kAIC at 480 Vac 85 kAIC at 240 Vac 40 kAIC at 415 Vac 18 kAIC at 600 Vac
Number of poles
Three-pole
Application of Multi-Wire Terminals for Molded Case Circuit Breakers
Application of Multi-Wire Terminals for Molded Case Circuit Breakers
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
Breaker service centers
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
MOEM MCCB product selection guide
MOEM MCCB product selection guide
MOEM MCCB product selection guide
Feature: 175 A amperage rating and 600 Vac voltage rating in a three-pole JG frame. Business Impact: Delivers robust overload and short-circuit protection for motor feeders and power circuits, improving uptime and equipment safety. Application: Ideal for three‑phase motors, pumps, and conveyors in manufacturing lines and process facilities. Feature: Trip type T185 with fixed thermal and adjustable magnetic trip. Business Impact: Provides precise protection curves, enabling selective coordination and minimizing nuisance trips. Application: Critical for equipment with inrush or varying loads, such as CNC machines and compressors. Feature: Copper line/load terminals with metric mounting hardware. Business Impact: Ensures low contact resistance and durable connections, allowing straightforward installation in standard enclosures. Application: Suitable for panel builders using standard Eaton MCCB accessories and bus systems. Feature: High interrupt ratings across voltages (85 kAIC at 240 Vac, 40 kAIC at 415 Vac, 35 kAIC at 480 Vac, 18 kAIC at 600 Vac). Business Impact: Supports safety and compliance in facilities with diverse fault current levels. Application: Protects feeders and motors in both plant-wide and line-level applications. Feature: 100% rated performance with line/load terminals and metric mounting; UL Listed, CSA Certified, CE Marked. Business Impact: Ensures regulatory compliance, reliability, and broad international suitability. Application: Fits standard Eaton accessories for scalable panel design and easy replacement.
Get a Quick Quote for a Eaton JGS3175FAGC
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JGS3175FAGC?
Enquire Now
FAQs
The JGS3175FAGC is rated for 175 A and 600 Vac, with a T185 trip type in a three-pole JG frame, providing robust overload and short‑circuit protection for three‑phase circuits.
Yes. It is a three‑pole, JG frame molded case circuit breaker designed for three‑phase power systems, with line/load terminals and metric mounting hardware for standard panel integration.
This model is UL Listed, CSA Certified, and CE Marked, offering broad regulatory compliance and safety validation for international installations.
Interrupt ratings include 85 kAIC at 240 Vac, 40 kAIC at 415 Vac, 35 kAIC at 480 Vac, and 18 kAIC at 600 Vac, supporting high fault-current protection in diverse plant sections.
It uses copper line/load terminals with metric mounting hardware, enabling reliable wiring and easy replacement within standard Eaton MCCB accessory ecosystems.
