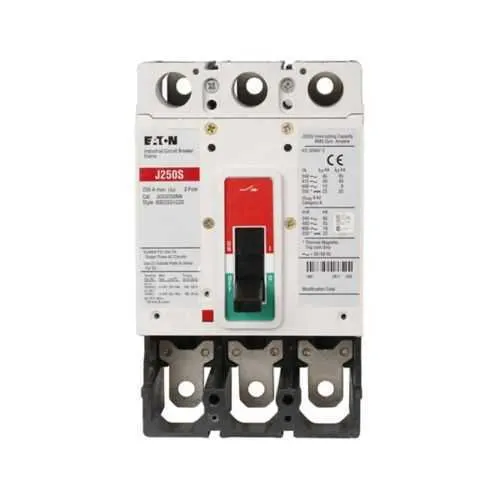

Eaton JGS3200AAG Complete MCCB - UL Listed, IEC Rated

Adjustable thermal and magnetic trip provides precise current-based protection that aligns with motor and load profiles. This reduces nuisance trips during startup and enables tuning for overload and short-circuit conditions, cutting downtime and extending equipment life. It is well suited for three-phase motors and variable-speed drives in manufacturing lines. JG frame with metric mounting hardware ensures seamless compatibility with Eaton Series G panels and standard MCCB slots. The complete breaker design simplifies retrofits by minimizing the need for adapters and reducing field wiring errors, saving installation time and labor costs. High interrupt ratings deliver robust protection against short circuits, featuring 85 kAIC at 240 Vac and 40–18 kAIC at higher voltages. This capability keeps feeders and sensitive equipment safe under fault conditions while supporting adherence to plant short-circuit withstand requirements. Line and load terminals on a three-pole device provide straightforward wiring and clear polarity, improving install accuracy and reducing commissioning time. The device’s compact 3.57 in depth and 4.13 in square footprint fits tight panel spaces without compromising accessibility. Certifications include IEC Rated, CSA Certified, and UL Listed, reinforcing global compliance and customer confidence. The unit ships with a one-year Eaton warranty (Policy 25-000) and an 18-month shipment window, which helps justify lifecycle costs and procurement plans.
