Eaton JGS3225FAG Complete Molded Case Circuit Breaker - UL Listed
Part Number: JGS3225FAG
Quick Summary
The Eaton JGS3225FAG is a complete molded case circuit breaker designed to protect 3‑phase electrical distribution in industrial panels across manufacturing, automation, and process industries. Engineers frequently wrestle with limited panel space, bulky wiring, and the need for fast, reliable fault isolation to prevent downtime and equipment damage. This model meets CE compliance and IEC rated performance, and holds CSA certification and UL listing for North American and international installations. Its compact footprint, metric mounting hardware, and 225 A rating deliver streamlined installation, predictable trip behavior, and long-term operational reliability, supporting tighter control cabinets and easier logistics in modern plants.
Product Information
Extended Description
JGS3225FAG Eaton: Series G MCCB: JG Frame, 225A, Three-pole, 600V, 85 kAIC at 240V, 40 kAIC at 415V, 35 kAIC at 480V, 18 kAIC at 600V, Line/load standard w/ metric mounting hardware, Fixed thermal, adj. magnetic
Product Name

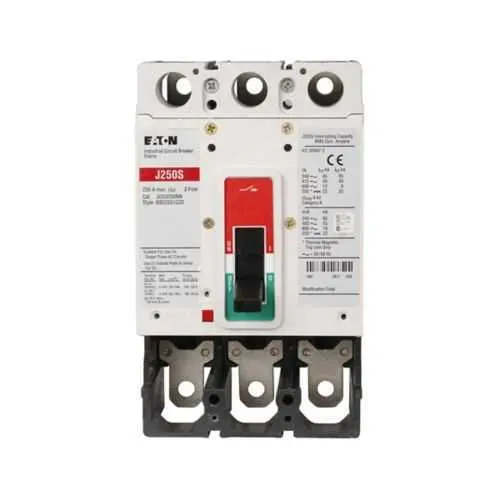

Eaton Series G complete molded case circuit breaker
Catalog Number
JGS3225FAG
UPC
782113526812
Product Length/Depth
3.57 in
Product Height
4.13 in
Product Width
4.13 in
Product Weight
6 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
CE Marked
Certifications
IEC Rated CSA Certified UL Listed
Type
Complete breaker
Amperage Rating
225 A
Voltage rating
600 Vac
Trip Type
T185
Circuit breaker type
JG
Circuit breaker frame type
Complete breaker
Terminals
Line and load
Frame
JG
Mounting hardware
Metric
Interrupt rating
18 kAIC at 600 Vac 40 kAIC at 415 Vac 85 kAIC at 240 Vac 35 kAIC at 480 Vac
Number of poles
Three-pole
