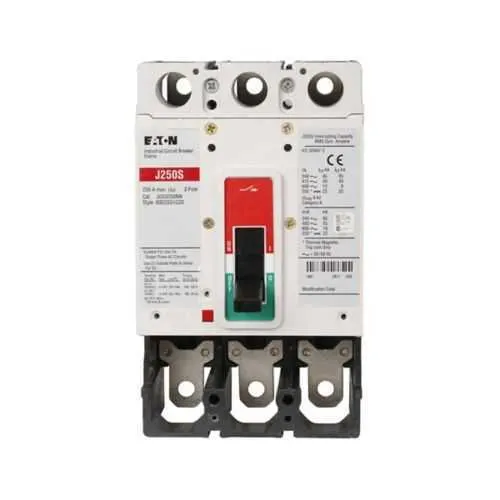

Eaton JGS3225FAGC Complete MCCB - 85 kAIC at 240 Vac

Feature → Business Impact → Application: Three-pole JG frame construction provides consistent three-phase protection, reducing the risk of unbalanced faults and enhancing panel safety in motor control centers. This translates to improved uptime and predictable trip behavior in demanding industrial environments. Feature → 225 A amperage rating with 600 Vac voltage rating delivers robust feeder protection for medium-sized motors and process equipment, supporting compact cabinet designs without compromising protection. Application: Panel feeders and MCC installations in manufacturing lines. Feature → Fixed thermal, adjustable magnetic trip (Trip Type T185) enables precise coordination with upstream protection and downstream devices, lowering nuisance trips while safeguarding critical loads. Application: Coordinated protection schemes in large installations. Feature → 100% rated interrupt capability, with 85 kAIC at 240 Vac and 35 kAIC at 480 Vac, along with 18 kAIC at 600 Vac, provides high fault current tolerance, reducing the need for upstream device upgrades. Application: Data centers, petrochemical plants, and energy-intensive facilities. Feature → Copper terminals and line/load connections with metric mounting hardware ensure reliable, low-resistance connections and straightforward installation; compatible with standard MCCB backbox layouts. Application: Rapid replacement in retrofit projects and new builds. Feature → Certifications and compliance (UL Listed, CSA Certified, IEC Rated, CE Marked) ensure regulatory acceptance across markets, easing procurement and reducing qualification costs. Application: Global deployments and multi-site rollouts. Feature → 100% rated performance under 600 Vac feeding critical equipment supports high-reliability control panels and minimizes downtime costs. Application: Industrial automation cabinets and power distribution panels. Feature →Compact, rugged design with a weight of approximately 6 lb and standard mounting dimensions; easy handling and installation in space-constrained enclosures. Application: Control rooms and compact MCC installations. Feature → Expanded documentation and downloadable resources, including application notes and selection guides, enable faster engineering decisions and verified compliance. Application: Panel design and maintenance planning for large-scale deployments.
