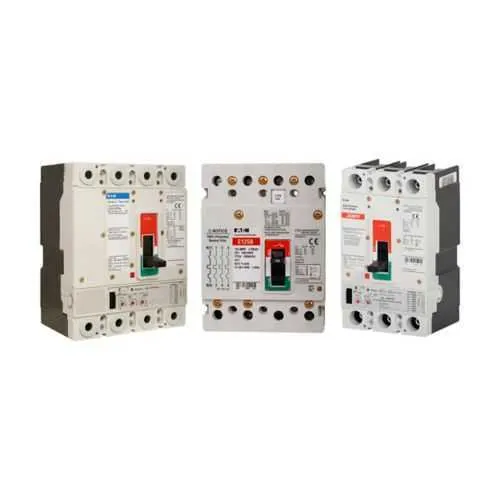

Eaton JGS325032GF01S6 Molded Case Circuit Breaker – UL Listed
Part Number: JGS325032GF01S6
Quick Summary
Eaton Series G molded case circuit breaker protects industrial panels and switchgear from overloads and short circuits. Many maintenance teams struggle with downtime caused by protection devices that don’t trip quickly enough or fail to coordinate with upstream protections. The unit carries UL Listed, IEC Rated, and CSA Certified approvals, supporting global deployment and safer operations. With a 3-pole design, 250 A rating, and 480V capability, it fits standard industrial distributions while offering reliable fault protection. Its factory-listed features—freeze grease lubrication and a 24VAC/DC shunt trip—enhance performance in harsh environments, reducing service calls and preserving uptime. This combination supports easier procurement and streamlined maintenance schedules for OEMs and end users.
Product Information
Extended Description
JGS325032GF01S6 Eaton: Eaton Series G molded case circuit breaker, JG 3P 250A 310+ LSI ETU 35KAIC@480V W/ FREEZE GREASE AND 24VAC/DC ST
Product Name
Eaton Series G molded case circuit breaker
Catalog Number
JGS325032GF01S6
UPC
786689211608
Product Length/Depth
7 in
Product Height
4.13 in
Product Width
4.13 in
Product Weight
6 lb
Certifications
UL Listed IEC Rated CSA Certified
Type
Series G
Amperage Rating
250 A
Series
Series G
Number of poles
Three-pole
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Eaton Specification Sheet - JGS325032GF01S6
Feature: The 3-pole design with a 250 A rating delivers precise protection for three-phase loads, supporting reliable motor operation in demanding environments. Business Impact: It coordinates with upstream protections and tolerates brief overloads without nuisance trips, reducing unplanned downtime and maintenance windows. Application: This MCCB is well suited for distribution panels, motor control centers, and controlled equipment in manufacturing, process industries, and material handling facilities that require predictable protection at 480V. Feature: The device offers a 7 in length and 4.13 in width, with a freight-friendly 6 lb weight, enabling straightforward installation in standard enclosures. Business Impact: A compact footprint lowers panel depth demands and minimizes wiring complexity, which speeds up installation and lowers labor costs. Application: Ideal for retrofit projects and new builds where space constraints and equipment density are critical considerations. Feature: Freeze grease lubrication enhances mechanical reliability in dusty, humid, or temperature-variant environments, extending service intervals and reducing maintenance calls. Business Impact: With improved longevity, operators experience less unscheduled downtime and lower spare-part consumption across the facility. Application: Suitable for harsh industrial settings such as food processing, chemical processing, and heavy machinery applications where ambient conditions vary. Feature: The 24 VAC/DC shunt trip provides fast, remote-trip capability, improving safety coordination with automation systems and emergency shutdown schemes. Business Impact: Quick fault isolation minimizes arc flash exposure and protects personnel while maintaining process stability. Application: Integrates with modern automation and control architectures in panel boards and MCCs, compatible with standard control voltages used in plants. Certification and standards credibility are built-in with UL Listed, IEC Rated, and CSA Certified approvals, ensuring global interoperability and supplier qualification. The unit’s compatibility with 480V three-phase distribution, together with documented short-circuit current rating of 35 kAIC, helps compliance teams meet regulatory requirements. From procurement to installation, this solution delivers measurable ROI through reduced downtime, streamlined maintenance, and predictable lifecycle costs across diverse industrial environments.
Get a Quick Quote for a Eaton JGS325032GF01S6
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JGS325032GF01S6?
Enquire Now
FAQs
The JGS325032GF01S6 supports standard three-phase installation in typical electrical enclosures. It utilizes a 7 in body depth and a 4.13 in by 4.13 in footprint, enabling straightforward mounting and wiring within standard panel boards. It accepts common conductor sizes and coordinates with upstream devices to optimize protection schemes, simplifying retrofits and new installations alike.
Key ratings include 250 A amperage, three poles, and a 480 V operating voltage, with a short-circuit current rating of 35 kAIC at 480 V. The device is UL Listed, IEC Rated, and CSA Certified, underscoring safety and regulatory compliance. This combination supports reliable protection for motors, transformers, and distribution circuits in industrial plants.
Yes. The three-pole, 250 A MCCB fits standard MCCB compartments and 480 V distribution schemes, making it suitable for motor control centers and distribution panels in manufacturing and process environments. It enables coordinated protection alongside upstream devices, reduces nuisance tripping, and improves uptime for critical equipment in industrial facilities.
The breaker carries UL Listed, IEC Rated, and CSA Certified approvals, ensuring global safety validation and regulatory alignment. These certifications simplify supplier qualification, support cross-border deployments, and satisfy customer and regulatory requirements in many markets. They also reinforce adherence to established short-circuit protection and switchgear interface standards.
Freeze grease lubrication reduces wear and extends service intervals, while the 24 VAC/DC shunt trip enables rapid remote shutdown during faults or automated safety sequences. Together, they lower maintenance costs, shorten mean time to repair, and improve personnel safety. For lifecycle planning, expect fewer field visits and more predictable operating costs across shifts and facilities.
