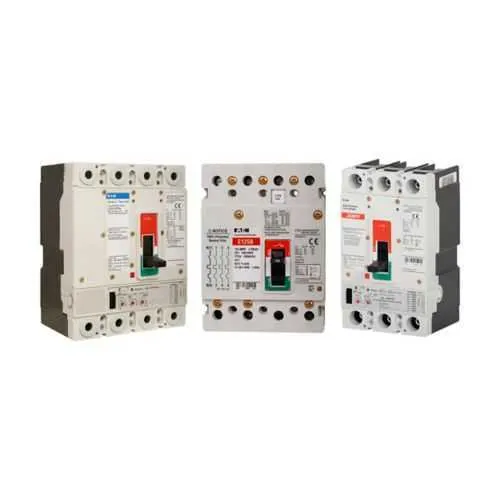

Eaton JGS325032W Molded Case Circuit Breaker - UL Listed
Part Number: JGS325032W
Quick Summary
The Eaton Series G molded case circuit breaker protects panelboards and control panels from overcurrent and short circuits. Engineers often wrestle with space constraints, coordination with upstream devices, and ensuring reliable trip performance across multiple voltages. This unit is UL Listed, CSA Certified and IEC-rated, enabling broad regulatory compliance and interchangeability in mixed-panel environments. By delivering rugged protection in a compact 3-pole 600 V design with streamlined installation, it reduces BOM complexity and accelerates project timelines, while supporting scalable protection strategies across industrial Ethernet, PLC panels, and motor control centers.
Product Information
Extended Description
JGS325032W Eaton: Eaton Series G, JG-frame Molded Case Circuit Breaker, Complete breaker , 250A, 85 kAIC at 240V, 40 kAIC at 415V, 35 kAIC at 480V, 18 kAIC at 600V, Three-pole, 600V, Metric, Line and load, 310+ electronic LSI
Product Name
Eaton Series G molded case circuit breaker
Catalog Number
JGS325032W
UPC
786689025380
Product Length/Depth
9.25 in
Product Height
6.25 in
Product Width
5 in
Product Weight
6.5 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Compliances
CE Marked
Certifications
CSA Certified IEC Rated UL Listed
Type
Complete breaker
Amperage Rating
250 A
Voltage rating
600 V
Trip Type
T40
Terminals
Line and load
Mounting hardware
Metric
Interrupt rating
18 kAIC at 600 Vac 40 kAIC at 415 Vac 35 kAIC at 480 Vac 85 kAIC at 240 Vac
Number of poles
Three-pole
Application of Multi-Wire Terminals for Molded Case Circuit Breakers
Application of Multi-Wire Terminals for Molded Case Circuit Breakers
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
High performance operating handles for Series G circuit breakers product aid
Breaker service centers
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
NG and ND-Frame molded case circuit breakers
NG and ND-Frame molded case circuit breakers
NG and ND-Frame molded case circuit breakers
The 250 A amperage rating with a 600 V operating voltage enables robust protection for heavy-load motors and critical feeders, while the three-pole design supports balanced protection across phases. This translates to reduced nuisance trips and improved uptime in manufacturing lines and process control panels. Interrupt ratings across voltages—18 kAIC at 600 V, 40 kAIC at 415 V, 35 kAIC at 480 V, and 85 kAIC at 240 V—provide high fault-current robustness, enabling safer, faster isolation in harsh industrial environments and minimizing unplanned downtime for conveyors and presses. Complete breaker including line and load terminals and metric mounting hardware simplifies installation and reduces sourcing time, helping engineering teams meet tight project schedules and space constraints. Certifications such as UL Listed, CSA Certified, and IEC-rated support compliance across North America and international panels, reducing qualification tasks during panel builds and upgrades. Compatibility with Series G accessories and Eaton application notes helps optimize selective coordination and safe multi-wire terminations, delivering predictable performance and lower total cost of ownership in complex control systems.
Get a Quick Quote for a Eaton JGS325032W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton JGS325032W?
Enquire Now
FAQs
The JGS325032W is configured with metric mounting hardware and line-load terminals, designed for straightforward installation in metric panels. This compatibility simplifies panel design and reduces the need for adapters, enabling faster field assembly and consistent electrical performance in industrial control panels and switchgear.
JGS325032W is a 3-pole molded case breaker rated 250 A at a 600 V nominal voltage. Its interrupt ratings are 18 kAIC at 600 V, 40 kAIC at 415 V, 35 kAIC at 480 V, and 85 kAIC at 240 V, supporting robust fault current handling across common industrial service voltages.
Yes. With a 250 A rating, 600 V maximum, and a high interrupt capacity, the JGS325032W is well-suited for motor feeders and motor control centers in 600 V systems. Its Series G platform provides consistent protection coordination with upstream devices, while the three-pole configuration supports balanced motor protection and safer shutdown during faults.
The JGS325032W carries UL Listed, CSA Certified, and IEC Rated certifications, along with CE marking compliance. This enables easier regulatory acceptance in North American and international installations, reduces conformity testing for panel builds, and supports safer, standards-aligned procurement within engineered systems and automation projects.
A comprehensive set of Eaton downloads supports design and installation, including application notes on multi-wire terminals, MCCB operating handles, and series-specific data sheets. Additional resources cover circuit protection catalogs, product selection guides, and service centers to streamline commissioning, troubleshooting, and ongoing maintenance in industrial environments.
